CX-8 update information
KG-07
Compatible with the new CX-8. New sports limousine appeared.
The color of the driver's car is dark.Complete tune KG-07.
As a full-fledged SUV with three rows of seats, the CX-3, which appeals for its fearlessness that differs from minivans, has expanded its capabilities and lineup through major product improvements.We, AutoExe, were quick to respond to the appearance of this new model. We will deliver the latest complete tune KG-8, which turns the large space of the CX-8 into a driver's car with excellent stability and maneuverability.
The styling kit includes a three-dimensional intake duct and a front under spoiler with a low wedge shape at the tip of the wing.A clean horizontal fin type front grille.In addition, the diffuser-type rear under and roof spoilers, which are integrally molded to the left and right mufflers, are unified in glossy piano black everywhere to express fearlessness and neatness.
In terms of functionality, the height-adjustable street sports suspension kit, which is the basis of driving, has been installed, as well as a motion control beam equipped with a vibration damper, and a premier tail muffler with exclusive fittings for diesel and gasoline vehicles. A full-fledged tune is planned for the transformation into a sports limousine.Status, footwork, utility... we want you to experience the rich maturity of the CX-8 with the KG-07, which responds to the desires of users who are uncompromising.
Styling kit
Front under spoiler
The three-dimensional intake duct and the wedge shape at the tip of the wing add a flowing force.Piano black painted.
Front grill
Trade in the Mazda emblem.Fin type with piano black on the surface and matte black paint on the recesses.
Rear under spoiler
A diffuser design with a three-dimensional effect that is integrally molded up to the periphery of the left and right mufflers.Piano black painted.
Rear roof spoiler
The left and right wingtips are accented.Wing type full of sports mind.Piano black painted (unpainted product setting available).
Sports side visor
Equipped with a ventilation mechanism that actively discharges the air inside the vehicle by using the negative pressure generated during driving.
Door handle cover & protector set
A matte carbon finish that protects the paint on the door handle and gives the styling a sporty look.
Front under spoiler dimensional drawing
The stated dimensions are the difference from the mass production bumper.Please use it as a guide when installing a styling kit such as road clearance.
The product is compatible with each safety equipment such as millimeter wave radar (SBS / MRCC), but it may not operate properly depending on the weather and driving conditions as well as mass-produced vehicles.
■ KG-07 Styling Kit For CX-8 (KG2P-450001~/KG5P-350001~)
| Product name | 適合 車 種 | part number | Tax-included price (Price without tax) | Spec. | Codes | Reference work time |
|---|---|---|---|---|---|---|
| Front under spoiler | KG2P-450001~/KG5P-350001~ | KFA1 V4 900 | ¥90,200 (¥ 82,000) | Piano Black Painted Made of PPE | D | 1.0 h |
| Front grill | KG2P-450001~/KG5P-350001~ | KGA1 V4 220 | ¥90,200 (¥ 82,000) | Piano Black / Matte Black 2 Colors Painted AutoExe Ornament Included ABS Resin | F | 1.0 h |
| Rear under spoiler | KG2P-450001~/KG5P-350001~ | KGA1 V4 930 | ¥85,800 (¥ 78,000) | Piano black painted ABS made | D | 0.9 h |
| Rear roof spoiler | KG2P-450001~/KG5P-350001~ | MKG2600-08 MKG2600 | ¥85,800 (¥ 78,000) ¥46,200 (¥ 42,000) | AutoExe Ornament included FRP Piano Black Painted Drilling required Includes AutoExe ornament Made of FRP Painting required Drilling required | D | 1.0 h |
| Sports side visor | KG2P-450001~/KG5P-350001~ | MKG0400 | ¥26,400 (¥ 24,000) | Smoke acrylic resin 4 piece set with ventilation mechanism | D | 0.5 h |
| Door handle cover & protector set | KG2P-450001~/KG5P-350001~ | KFA1 V3 110 | ¥29,260 (¥ 26,600) | Carbon-like weatherproof ABS cover x 4 PVC protector x 4 XNUMX set | D | 1.0 h |
※ 1 A part of the front grill may be reflected on the screen of the front monitor.Also, when installed on a vehicle with a 360° view monitor, it may be necessary to adjust the aiming of the camera.
KG-06
KG-06 styling kit for the pre-facelift model.The symbol of this is the clean, horizontal markless grill.A front under and rear roof spoiler with wedge-shaped wingtips, and a sports muffler with a straight structure that can be attached together with the special garnish.
Styling kit
Front under spoiler
An additional type that can be attached to a mass-produced front bumper to visually realize a low form.The wedge shape at the tip of the wing, which is an accent, adds a flowing power to the CX-8.Piano black painted.
Front grill
A simple markless grill that expresses neatness and power.Piano black is applied to the surface and matte black is applied to the recesses to emphasize the three-dimensional form.Trade-in with mass-produced grills.
Muffler garnish
The combination of the dual tail with four left and right and the exclusive muffler garnish makes the rear view look fearless.
Rear roof spoiler
Wing type that tightens the rear view.The wedge shape at the tip of the wing, which aims for total coordination with the front under spoiler, enhances the sense of dynamism.Piano black painted.
Sports side visor
A high-performance side visor with a ventilation mechanism in addition to rain and sun protection.When the recommended side window is open, the negative pressure generated during driving is used to actively discharge the indoor air.At the same time, it also has the effect of preventing the ingress of rainwater.
The product is compatible with each safety equipment such as millimeter wave radar (SBS / MRCC), but it may not operate properly depending on the weather and driving conditions as well as mass-produced vehicles.
■ KG-06 Styling Kit For CX-8 (KG2P-~449999/KG5P-~349999)
| Product name | 適合 車 種 | part number | Tax-included price (Price without tax) | Spec. | Codes | Reference work time |
|---|---|---|---|---|---|---|
| Front under spoiler | KG2P- ～ 449999 / KG5P- ～ 349999 ※ 1 | MKG2100-08 | ¥85,800 (¥ 78,000) | FRP piano black painted drilling required | D | 0.8 h |
| Front grill | KG2P- ～ 449999 / KG5P- ～ 349999 ※ 2 | MKG2500 | ¥68,200 (¥ 62,000) | Piano black / matte black 2 colors painted ABS resin ※ 3 | D | 1.0 h |
| Muffler garnish | KG2P- ～ 449999 / KG5P- ～ 349999 | MKG2400A | ¥30,800 (¥ 28,000) | For vehicles with sports muffler (MKG8Y50 / 8Y60) Cannot be installed separately AES black satin finish (no painting required) Rear bumper excision required | D | 1.0 h |
| Rear roof spoiler | KG2P- ～ 449999 / KG5P- ～ 349999 | MKG2600-08 MKG2600 | ¥85,800 (¥ 78,000) ¥46,200 (¥ 42,000) | AutoExe Ornament included FRP Piano Black Painted Drilling required Includes AutoExe ornament Made of FRP Painting required Drilling required | D | 1.0 h |
| Sports side visor | KG2P- ～ 449999 / KG5P- ～ 349999 | MKG0400 | ¥26,400 (¥ 24,000) | Smoke acrylic resin 4 piece set with ventilation mechanism | D | 0.5 h |
※ 2 Cannot be installed on Exclusive Mode / L Package grades of KG2P-350001 ~ / KG5P-250001 ~.Also, when mounting on a car equipped with a 360 ° view monitor, it is necessary to process the bracket for mounting the front camera.
※ 3 A part of the front grill may be reflected on the screen of the front monitor.Also, when installed on a vehicle with a 360° view monitor, it may be necessary to adjust the aiming of the camera.
Functional parts
Suspension
"A New Driving Sensation" Suspension is at the core of sporty driving.Our aim is to handle at will beyond the framework of mass-produced vehicles.For drivers who want to enjoy driving positively, it is not just hard and soft, but it provides a street best ride with refined dynamic sensitivity performance such as initial response at the time of steering and transient characteristics of roll. >> Read more
■ Lowdown spring
A low-down spring that tightens the styling sporty and improves handling by lowering the center of gravity.Not too low, not too strong ... By keeping the vehicle height to -30mm and the spring constant to about 110%, the suspension stroke is secured even in combination with mass-produced dampers, and consideration is given so that the damping ratio does not drop too much. ing.>> More details
<Main specifications> ・ Vehicle height: -30mm ・ Spring constant isplease use this form. for more information.
■ Sports damper
Although it has the same shape as the mass-produced product, the internal piston adopts a "very low speed valve" that generates precise damping force from the moment it starts moving.It accurately controls changes in the vehicle's posture and achieves a sporty, flat and high-quality ride.It is recommended to use with genuine springs (can be used with lowdown springs).>> More details
<Main specifications> ・ Fixed gas damping force
■ Street Sports Suspension Kit
The best street model that AutoExe thinks.A twin tube damper that quickly raises the damping force from the very low speed range and controls the roll speed based on dynamic Kansei engineering.Achieves linear maneuverability without compromising ride comfort.>> More details
<Main specifications> ・ Spring constant Fr: 32.3N / mm Rr: 66.6N / mm
■ Adjustable stabilizer link
When the vehicle height is down, the angle of the lower arm changes.As a result, the arm angle between the stabilizer and the link becomes an acute angle, which tends to spoil the original stabilizer effect.This product corrects the arm angle when the vehicle height is lowered by adjusting the link length.Optimize the stabilizer function.>> More details
<Main specifications> -Full length adjustable XNUMX-piece set-Front and rear settings.
■ Sports stabilizer
A stabilizer that connects the left and right suspension arms with a pipe and suppresses roll by the spring effect.This product has moderately strengthened spring rate from mass production.Stabilizes the posture when cornering while keeping controllability.Since the spring effect hardly occurs when going straight, the effect on the ride quality is minimal.>> More details
<Main specifications> ・ Front / rear settings ・ Front: Solid Φ24.0 ・ Rear: Solid Φ19.0 (2WD car) / Solid Φ20.0 (4WD car)
| Product name | 適合 車 種 | part number | Tax-included price (Price without tax) | Spec. | Codes | reference Working hours |
|
|---|---|---|---|---|---|---|---|
| Low down spring | Diesel 2WD / Gasoline turbo 2WD car ※ 1 Gasoline NA 2WD car※ 1 Diesel 4WD / Gasoline turbo 4WD car ※ 1 Gasoline NA 4WD car ※ 1 | MKG7000 MKG7200 MKG7100 MKG7300 | ¥52,800 (¥ 48,000) | Vehicle height-30mm Spring constant: Fr: 32.1 Rr: 54.7N / mm Vehicle height-30mm Spring constant: Fr: 29.2 Rr: 54.7N / mm Vehicle height-30mm Spring constant: Fr: 32.1 Rr: 65.0N / mm Vehicle height-30mm Spring constant: Fr: 29.2 Rr: 65.0N / mm | D | 2.3 h | |
| Sports damper | All cars | MKG7700 | ¥83,600 (¥ 76,000) | Compatible with fixed damping force mass production springs / AutoExe springs | D | 1.8 h | |
| Street Sports Suspension Kit | All cars ※ 1 | MKG7850 | ¥217,800 (¥ 198,000) | Vehicle height adjustment type Damping force fixed type Spring constant: Fr: 32.3 Rr: 66.6N / mm Vehicle height adjustment range (mm): -15 to -35 | D | 2.9 h | |
| Adjustable stabilizer link | front rear | All cars ※ 2 All cars | MKE7605 MKE7655 | ¥24,200 (¥ 22,000) ¥22,000 (¥ 20,000) | Full length adjustable left and right set of 2 | D | 0.5 h |
| Sports stabilizer | front | All cars ※ 3 | MGJ7600 | ¥30,800 (¥ 28,000) | Solid φ24.0 Spring constant (compared to mass-produced vehicles) 115-135% | D | 2.5 h |
| Sports stabilizer | rear | KG2P-200001 ～ 2WD car / KG5P 2WD car ※ 4 KG2P- ～ 199999 2WD car 4WD car ※ 5 | MBM7650 MKE7650 MKE7660 | ¥28,600 (¥ 26,000) | Solid φ18.0 Spring constant (compared to mass-produced vehicles) 120% Solid φ19.0 Spring constant (compared to mass-produced vehicles) 114% Solid φ20.0 Spring constant (compared to mass-produced vehicles) 116% | D | 2.0 h |
※ 1 When installed in a car with a 360 ° view monitor, it may be necessary to adjust the aiming of the camera.
※ 2 When installing the Street Sports Suspension Kit (MKG7850), it is not necessary to install the same product due to its functionality.
※ 3 KG2P-200001～/KG5Pに装着する場合、純正スタビライザープレート(KD35-34-155)×2、スタビライザーブッシュ（GHT6-34-156A）×2 別途必要。
※ 4 To install, genuine stabilizer plate (KD35-28-155) x 2 and stabilizer bush (B45A-28-156) x 2 are required separately.
※ 5 KG2P-200001～/KG5Pに装着する場合、純正スタビライザープレート(KD35-28-155)×2、スタビライザーブッシュ（KD35-28-156D）×2 別途必要。
Bodysuit
In order to enhance the sense of unity between the driver and the car, tuning to train the body is the basis.By suppressing slight distortion of each part of the body due to input from the road surface such as during cornering, the movement of the suspension initial operating area absorbed by the distortion is drawn out, and handling with a direct feeling without delay of reaction from the moment when the steering is started Contribute to. >> Read more

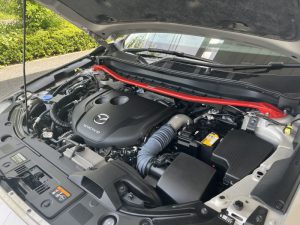

■ Strut tower bar
By connecting the left and right strut towers, the body rigidity is increased.The steel oval shaft, which is advantageous in terms of rigidity, and the one-piece structure ensure the highest level of strength for a two-point system.It is effective when installed separately, but it is best to use it together with the floor crossbar and lower arm bar that are set at the same time.>> More details
<Main specifications> -Steel 2-piece structure XNUMX-point type
■ Floor crossbar
By running the bar on the rear floor, it has an effect similar to that of a tower bar.There is no need to drill holes in the body as the mounting points utilize 3 points such as the seat mounting part with high strength.No impact on utility space.Although it is effective even when used alone, it is recommended to use it together with the strut tower bar.>> More details
<Main specifications> -Steel 1-piece structure 3-point type
■ Lower arm bar (front)
In mass-produced vehicles, deformation is suppressed by connecting the bases of the left and right lower arms, which are the suspension mounting base points of the open structure, with steel oval pipes.Supports accurate handling by regulating unnecessary alignment changes.Recommended for use with strut tower bars, floor cross bars, etc.>> More details
<Main specifications> -Steel oval shaft 1-piece structure 2-point type
■ Lower arm bar (rear)
In mass-produced vehicles, deformation is suppressed by connecting the bases of the left and right lower arms, which are the suspension mounting base points of the open structure, with steel oval pipes.Supports accurate handling by regulating unnecessary alignment changes.Recommended for use with floor crossbars.>> More details
<Main specifications> -Steel oval shaft 1-piece structure 2-point type
■ Member brace set
An evolved version of the lower arm bar.By mounting a steel frame with a three-dimensional truss structure on the body floor, the chassis rigidity of the highest level as a bolt-on part is obtained.Combined with a strut tower bar that reinforces the front and back of the upper part of the body, a tough monocoque body with two upper and lower stages is completed.Front and back set. >> More details
<Main specifications> -Steel oval shaft with all 6 pieces
■ Motion control beam
Reinforces the front and rear ends of the body to increase torsional rigidity.By suppressing the vibration of the body due to high rigidity with an ultra-high damping friction type damper, it creates a street-best ride with strength and suppleness.A set of two front and back.>> More details
<Main specifications> ・ Friction type damper + steel shaft ・ With special mounting bracket
| Product name | 適合 車 種 | part number | Tax-included price (Price without tax) | Spec. | Codes | Reference work time | |
|---|---|---|---|---|---|---|---|
| Strut tower bar | front | All cars | KFA1 V5 420 | ¥29,700 (¥ 27,000) | Steel 1-piece structure 2-point type | D | 0.5 h |
| Center floor bar | All cars ※ 1 | MKG4D00 | sold out. | Steel 1-piece structure 4-point type | D | 0.5 h | |
| Floor crossbar | rear | All cars | MKG4500 | ¥19,800 (¥ 18,000) | Steel 1-piece structure 3-point type | D | 1.0 h |
| Lower arm bar | front rear | All cars ※ 2 All cars ※ 2 | MKE460 MKF4400 | ¥15,400 (¥ 14,000) | Steel 1-piece structure 2-point type | D | 0.5 h |
| Member brace set | 2WD car ※ 2 4WD car ※ 2 | MKG4700 MKG4710 | sold out. ¥83,600 (¥ 76,000) | Steel 6-piece structure 14-point front and rear set | D | 1.5 h | |
| Motion control beam | All cars | MKF4900 | ¥104,500 (¥ 95,000) | Front and rear set with friction damper + steel shaft mounting bracket | E | 1.0 h |
※ 1 Cannot be installed on vehicles equipped with a 2-seater front console rear seat cup holder from KG300001P-5 to / KG200001P-6.
※ 2 The member brace set and lower arm bar cannot be installed at the same time.
Intake & Exhaust
In the intake / exhaust tune, which is directly linked to the pleasure of driving, the point is not to improve the peak power, but to react to instantly convey the driver's intention to the car.The accelerator response has been refined based on the air filter and muffler with moderately reduced resistance.The restrained sports sound also deepens communication between the driver and the car. >> Read more
■ Air filter replacement
A genuine shape product that easily and effectively improves intake efficiency by utilizing the air cleaner box of mass-produced vehicles.The drywall with excellent breathability has little effect on the airflow sensor and is easy to maintain.Disposable type and reasonable price.>> More details
<Main specifications> ・ Dry type ・ Disposable type
■ Sports induction box
Use the air cleaner box of a mass-produced car to replace the case on the suction side.Directly guides fresh air to the air filter to improve intake efficiency.The sound also changes to sports-like.Further increase efficiency by combining with the optional K & N air filter.>> More details
<Main specifications> -Funnel type FRP frame + aluminum heat shield

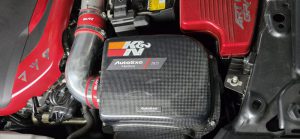

■ Ram air intake system
A high-end intake system that pursues efficiency and looks.While following the basic layout of mass production that is not easily affected by the radiant heat of the radiator, the suction port area of the fresh air duct has been expanded by 50%.By combining a 3-piece duct / large cleaner box with a straight path as much as possible and a dedicated cylindrical filter, the filling efficiency corresponding to the increased air is improved.Improves power and torque from the normal range.The appearance made of real carbon is also high quality.>> More details
<Main specifications>・Carbon air duct + dedicated air filter
■ Fresh air guide
The "Fresh Air Guide" is an item that supports the improvement of intake efficiency by directly capturing the running wind from the front of the vehicle body.By directly connecting the front grille, which does not have a clear intake path in mass-produced vehicles, to the air intake port installed at the top of the core support with a dedicated air duct, the effect of exhaust heat from radiators etc. is minimized, and fresh air is air cleanered. It is introduced in the box to improve the filling efficiency. >> More details
<Main specifications> -FRP red gel coat finish
■ Intake suction kit
Specifications that secure the maximum effective flow path area of intake air and reduce intake resistance.The material used is multi-layer polystar silicon or FRP pipe, which has a high effect of suppressing deformation due to suction negative pressure.As a result, the accelerator response has been improved.The crimson coloring adds an accent to the engine room.>> More details
<Main specifications> -Made of FRP / 4-layer polystar silicon hose-Detailed specificationsplease use this form. for more information.

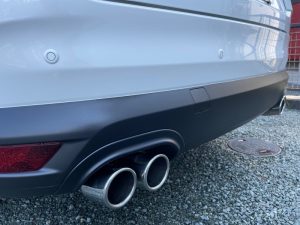

■ Premier tail muffler
As a new CX-8 exclusive item, set for diesel/gasoline NA vehicles respectively.The large-diameter oval-shaped tail end has a very mature feel.With a narrow main pipe diameter and a straight structure silencer that carefully tunes the internal structure, it achieves both improved accelerator response from the practical range and a gentle sports sound that suppresses the noise in the cabin.>> More details
<Main specifications> ・ Stainless steel ・ Main diameter: Φ60.5 ・ Tail diameter: Φ110 × 95 × 2 ・ Safety standard compliant product
■ Sports muffler (for diesel vehicles)
Compatible with pre-facelift models.A straight structure that gives the rear view a fearless appearance by combining the left and right dual tails with a dedicated muffler garnish.A resonator (resonance chamber) installed in the middle of the pipe interferes with and cancels out the sound waves to suppress unpleasant low frequencies (boiling sound), improving both the acceleration response and the clear exhaust note. Let
<Main specifications> ・ Pipe diameter: Φ60.5 ・ Tail diameter: Φ90 × 4 * Simultaneous installation with muffler garnish is required.
[Sound library for audition] * You can compare it with the mass-produced muffler recorded under the same conditions.It may not be accurate due to the characteristics of the playback environment, but please watch it as a reference for changes in sound quality and volume.
■ Sports muffler (for gasoline vehicles)
Compatible with pre-Facelift models.The combination of left and right dual tails and a special muffler garnish gives the rear view a fearless appearance.A straight structure silencer that silences sound by interfering sound waves with parallel arrangement of internal pipes with a punching structure is adopted exclusively for gasoline vehicles.It achieves both improved accelerator response and a clear exhaust note.
<Main specifications> ・ Pipe diameter: Φ60.5 ・ Tail diameter: Φ90 × 4
* Must be installed at the same time as the muffler garnish.>> More details
■ Muffler garnish
Muffler garnish exclusively for sports mufflers.Black satin finish that does not require painting.A part of the mass-produced bumper is cut off and installed at the same time as the muffler to realize a form full of unity.Cannot be installed separately.>> More details
<Main specifications> -Black (pear-skin) -Made by AES-Cannot be installed separately * Requires simultaneous installation with a sports muffler.
■ Exhaust chamber kit
The aim of the intermediate exhaust pipe kit with a built-in chamber mechanism is to expand the "suction effect (pulsation effect)".Exhaust efficiency is improved by properly laying out a specially sized chamber.It is possible to install the parts individually, but we recommend using them together with the AutoExe muffler. >> More details
<Main specifications> ・ Main pipe diameter: Φ60.5 ・ Chamber diameter: Φ89.1
■ Exhaust finisher
A finisher that bolts on to the tail end of the genuine muffler.The oval shape, which is composed of thick and beautiful curves, renews the image of the conventional muffler cutter.It is ideal for users who want to add fashionability while keeping the genuine muffler.>> More details
<Main specifications> -Stainless steel-Set of 95 left and right-Tail Φ80 x XNUMX oval-AutoExe logo included
| Product name | 適合 車 種 | part number | Tax-included price (Price without tax) | Spec. | Codes | Reference work time | |
|---|---|---|---|---|---|---|---|
| Air filter replacement | Diesel / gasoline turbo car Gasoline NA car | MKE9A00 MBL9A10 | ¥9,350 (¥ 8,500) | Dry-type disposable (disposable) type | D | 0.3 h | |
| Sports induction box | No filter | Diesel / gasoline turbo car Gasoline NA car | MKG957 MGJ957A | ¥38,500 (¥ 35,000) ¥38,500 (¥ 35,000) | Funnel type FRP frame + aluminum heat shield | D | 1.0 h |
| Sports induction box | With filter | Diesel / gasoline turbo car Gasoline NA car | MKG957X MGJ957XA | ¥49,500 (¥ 45,000) ¥49,500 (¥ 45,000) | Funnel type FRP frame + aluminum heat shield K & N air filter included | D | 1.0 h |
| Ram air intake system | Diesel Car Gasoline turbo car Gasoline NA car | KGA1 V5 900 KGA2 V5 900 MKF9590 | ¥123,200 (¥ 112,000) ¥123,200 (¥ 112,000) ¥96,800 (¥ 88,000) | Carbon air duct + carbon/FRP box Dedicated air filter included Carbon air duct + carbon/FRP box Dedicated air filter included Carbon box Dedicated air filter included | F | 1.0 h | |
| Fresh air guide | All cars ※ 1 | MKF9B00 | ¥35,200 (¥ 32,000) | FRP 2-piece configuration Red gel coat finish | D | 1.0 h | |
| Intake suction kit | Diesel Car Gasoline turbo car Gasoline NA car | MKE961 MKF9610 MGJ961 | ¥30,800 (¥ 28,000) ¥19,800 (¥ 18,000) ¥17,600 (¥ 16,000) | FRP red gel coat finish Silicone hose / band included Silicone hose Silicone hose | D D D | 0.5 h 0.2 h 0.3 h |
|
| Premier tail muffler | KG2P-450001~ KG5P-350001~ NA car | KGA1 V5 810 KGA2 V5 810 | ¥104,500 (¥ 95,000) ¥140,800 (¥ 128,000) | Stainless steel main pipe diameter φ60.5 Tail diameter 110 × 95mm (× 2) | D | 0.7 h | |
| Sports muffler | KG2P-~449999 ※ 2 KG5P-~349999 turbo 4WD car/KG5P-~349999 NA 2WD car ※ 2 | MKG8Y50 MKG8Y60 | ¥140,800 (¥ 128,000) ¥162,800 (¥ 148,000) | Stainless steel main pipe diameter φ60.5 Tail diameter 90mm (× 4) | F | 0.7 h | |
| Muffler garnish (For sports muffler installation) | All cars ※ 2 | MKG2400A | ¥30,800 (¥ 28,000) | AES black satin finish (no painting required) | D | 1.0 h | |
| Exhaust chamber kit | Diesel 2WD car Diesel 4WD car | MKG8400 MKG8410 | ¥75,900 (¥ 69,000) | Stainless steel main pipe diameter φ60.5 Chamber diameter φ89.1 | D | 0.5 h | |
| Exhaust finisher | All cars ※ 3 | MGH8A00 | ¥38,500 (¥ 35,000) | Set of 2 with AutoExe logo for mounting genuine stainless steel muffler | D | 0.2 h |
※ 1 To install it, it is necessary to cut off the upper surface of the front bumper and relocate the horn.
※ 2 Cannot be installed separately.It is necessary to install the sports muffler (MKG8Y50 / 8Y60) and muffler garnish (MKG2400A) at the same time.It is necessary to cut off the rear bumper for installation.
※ 3 Cannot be installed on KG2P-350001~/KG5P-250001~ Exclusive Mode and Sports Apperance.
Brake
The first thing that is required of a brake is the ability to stop safely.And in order to enjoy running freely, controllability that can decelerate at will is required.The brake pad, which has a small change in the coefficient of friction (μ) even during continuous braking, and the brace, which increases the rigidity of the pedal mounting part and eliminates the delay in effectiveness, realizes the effect of synchronizing with the driver's sensibility.>> Read more
■ Street sports brake pads
The aim is "deceleration at will".Designed with an emphasis on stable effectiveness during continuous braking, delicate load transfer in cornering, and flexible control of vehicle speed, rather than simply stopping performance.Focus on the amount of change and how to change the coefficient of friction (μ), which constantly changes depending on various conditions such as pedaling force, speed, and temperature.The "transient characteristics of μ" required by sports-oriented drivers realizes a taste that is synchronized with the sensibilities.>> More details
<Main specifications> ・ Non-asbestos friction material ・ Rotor proper temperature: 0 to 400 ℃
■ Street brake rotor
Mass-produced XNUMX-piece structure with the same shape FC Cast iron, but with improved strength by controlling the content of carbon and silicon.Further heat treatment is applied to stabilize the metal connective tissue.It suppresses distortion due to heat and improves fade resistance and crack resistance.>> More details
<Main specifications> ・ 6 slits on one side ・ 1 piece type
■ Brake pedal brace
The bracket of the pedal mounting part, which causes slight distortion during brake operation, is three-dimensionally reinforced with steel braces to ensure rigidity.It improves the delay in reaction from when the pedal is pressed until the brake is applied, and contributes to a direct effect.>> More details
<Main specifications> -Steel 2-piece structure
| Product name | 適合 車 種 | part number | Tax-included price (Price without tax) | Spec. | Codes | Reference work time | |
|---|---|---|---|---|---|---|---|
| Street sports brake pads | front rear | All cars All cars | MLY5A10 Mkg5a20 | ¥16,500 (¥ 15,000) ¥14,300 (¥ 13,000) | Non-asbestos rotor Appropriate temperature: 0-400 ℃ | D | 0.5 h |
| Street brake rotor | front rear | All cars All cars | Mkg5a50 Mkg5a55 | ¥46,200 (¥ 42,000) ¥44,000 (¥ 40,000) | 1 piece type with cleaning slit Left and right 2 pieces set | D | 1.0 h |
| Brake pedal brace | All cars | MGJ4950 | ¥19,800 (¥ 18,000) | Steel 2-piece configuration | D | 0.6 h |
Engine & Drivetrain
A group of parts that draws out the full potential of the engine and converts it into traction.A sports clutch set and flywheel that support a pleasant gear change.Limited slip differential, which allows you to actively enjoy the change in the posture of the car when cornering, has created transient characteristics that eliminate sudden movements as much as possible while enhancing the direct feeling with the car.
■Sports oil filter
Fine sludge is removed by using a high-efficiency filter medium.By expanding the filtration area by about 5% compared to mass production, filtration efficiency is improved and pressure loss is reduced.Furthermore, by incorporating a powerful neodymium magnet, metal wear debris is captured without missing.It balances the functions required for oil filters at a high level.Dedicated to gasoline engine vehicles. >> More details
<Main specifications> ・ Built-in strong magnet ・ Filtration area expanded by about 5% compared to mass production
| Product name | 適合 車 種 | part number | Tax-included price (Price without tax) | Spec. | Codes | Reference work time |
|---|---|---|---|---|---|---|
| Sports oil filter | Gasoline car | A00182 | ¥3,080 (¥ 2,800) | Built-in strong magnet Filtration area expanded by about 5% compared to mass production | D | 0.1 h |
Utility
In order to enjoy everyday driving, I want to pay attention not only to running but also to the texture and usability of the appearance.Please also pay attention to utility items with functionality not found in mass-produced cars, such as a side visor with a ventilation mechanism that tightens the style with a sporty aero form.
■ Oil filler cap
The oil filler cap has been changed from genuine resin to 52S aluminum, which is fully machined and full of craftsmanship.Brilliant red alumite processing is applied to give a mechanical and gorgeous accent to the engine room.The laser-engraved AutoExe logo is also a delicate impression. >> More details
<Main specifications> ・ 52S aluminum fully machined ・ Red alumite processing ・ Laser engraved with AutoExe logo
■ Oil level gauge grip
An item that replaces the resin grip of a mass-produced oil level gauge with aluminum, which is full of craftsmanship.Red alumite processing and laser engraved AutoExe logo give the engine room a mechanical and gorgeous accent.DIY installation is possible with the attached dedicated tool. Compatible with a wide range of vehicles equipped with the SKYACTIV engine. >> More details
<Main specifications> -Aluminum-Red alumite-With AutoExe logo-Includes a dedicated tool for mounting
■ Brake fluid cap
The resin mass-produced brake fluid tank cap has been upgraded to aluminum, which is full of craftsmanship.Red alumite processing and laser engraved AutoExe logo give the engine room a mechanical and gorgeous accent.Combined with an oil filler cap and level gauge grip with the same design, it accelerates the total coordination of the engine room. >> More details
<Main specifications> -Aluminum-Fully machined-Red alumite processing-Laser engraved AutoExe logo included
■ Fuel cap cover
An ABS cover that can be attached over a mass-produced fuel cap.The design with cap bolts on bright Exe Red gives a gorgeous impression to the fuel filler port. With AutoExe logo.Compatible with a wide range of current Mazda vehicles. >> More details
<Main specifications> ・ ABS red painted ・ With decorative cap bolt ・ With AutoExe logo ・ Double-sided tape attached ・ Fuel label / erroneous oil supply prevention reminder sticker included
■ Optima Battery
Synonymous with maintenance-free batteries, which boast a longer life than conventional open-type batteries.It is a completely sealed type that uses the original spiral cell technology, so there is no need to replenish the battery fluid.Provides a stable current even under high load.Can be installed without using additional adapters.>> More details
<Main specifications> -Maintenance-free type made by Optima Battery
■ Battery clamp
Playful in the engine room. Made of one-piece steel designed with the image of an AutoExe strut tower bar.The bright red color and logo plate have been faithfully reproduced.>> More details
<Main specifications> -Steel red paint-With AutoExe ornament
■ Aero wiper deflector set
Dedicated to CX-5 (KF) / CX-8 (KG) / Atenza (GJ series-400001 ~) equipped with top lock type wiper.A wind deflector that receives wind pressure and suppresses the lift of the blade is attached to the mass-produced wiper arm to complete the aero style.A set of 2 for the front. >> More details
<Main specifications> -Wind deflector for mounting mass-produced wiper arm 2 left and right set
■Sports side visor
A high-performance side visor with a ventilation mechanism in addition to rain and sun protection.When the recommended side window is open, the negative pressure generated during driving is used to actively discharge the indoor air.At the same time, it also has the effect of preventing the ingress of rainwater.>> More details
<Main specifications> -Smoke type acrylic resin-Set of 4 left and right with AutoExe logo
■ Door handle cover & protector set
A carbon-like matte design that protects the fragile door handle and gives it a sporty look.Pursuing high-quality details and achieving a natural and unified fitting.A package for one unit is available, and the door handle and protector can be purchased separately. >> More details
<Main specifications> ・ Carbon tone ・ Weather resistant ABS cover x 4 ・ PVC protector x 4 ・ One set
■antenna garnish
A dress-up item that makes the mass-produced shark fin antenna look fearless with its mechanical carbon pattern and AutoExe logo. The material is flexible PVC, and double-sided tape can be easily attached to the antenna body. *The antenna body is not included in the product.>> More details
<Main specifications> ・Carbon tone ・AutoExe logo included ・Made of PVC with double-sided tape ・Set of 2 left and right
■ Wheel nut set
Irregular heptagonal (heptagonal) small diameter type with an aluminum end cap with the AutoExe logo.The main body is made of high-strength black-painted chrome vanadium steel that does not easily loosen at high temperatures.The knurled red-colored aluminum end cap adds a subtle and sophisticated accent to your car's footwell.>> More details
<Main specifications> - Body: Made of chrome vanadium steel, black paint - Cap: Made of aluminum, red anodized + clear paint - AutoExe logo included - Irregular heptagon type, special adapter wrench included
| Product name | 適合 車 種 | part number | Tax-included price (Price without tax) | Spec. | Codes | Reference work time |
|---|---|---|---|---|---|---|
| Oil filler cap | All cars | A1400-03 | ¥6,380 (¥ 5,800) | One-touch type Aluminum red alumite with AutoExe logo | D | 0.1 h |
| Oil level gauge grip | Diesel / Gasoline NA car Gasoline turbo car | A1450-03 A1451-03 | ¥6,380 (¥ 5,800) sold out. | Aluminum red alumite with AutoExe logo Dedicated tool for mounting included | D | 0.2 h |
| Brake fluid cap | All cars | A1900-03 | ¥7,480 (¥ 6,800) | Aluminum red alumite with AutoExe logo | D | 0.1 h |
| Fuel cap cover | All cars | A1600-03A | ¥5,280 (¥ 4,800) | ABS red painted decorative cap with bolt AutoExe logo | D | 0.1 h |
| Optima battery | All cars | A01200 | ¥62,920 (¥ 57,200) | Color: Yellow Top | F | 0.3 h |
| Battery clamp | All cars | A1700 | ¥7,480 (¥ 6,800) | Steel red paint with AutoExe logo | D | 0.1 h |
| Aero wiper deflector set | All cars | MKF0240 | ¥6,380 (¥ 5,800) | Wind deflector for mass production wiper arm mounting Left and right 2 pcs set | D | 0.1 h |
| Sports side visor | All cars | MKG0400 | ¥26,400 (¥ 24,000) | Smoke acrylic resin 4 piece set with ventilation mechanism | D | 0.5 h |
| Door handle cover & protector set | All cars | KFA1 V3 110 | ¥29,260 (¥ 26,600) | Carbon-like weatherproof ABS cover x 4 PVC protector x 4 XNUMX set | D | 1.0 h |
| antenna garnish | All cars ※ 1 | DJA1 V3 040 | ¥8,800 (¥ 8,000) | Carbon-like PVC with AutoExe logo, double-sided tape attached, left and right set of 2 | D | 0.3 h |
| Wheel nut set | All cars | C9A1 V9 770 | ¥16,280 (¥ 14,800) | Includes a dedicated adapter wrench for mounting the Heptagon type with the AutoExe logo | D | 0.3 h |
※ 1 Sensitivity may decrease depending on the reception conditions when listening to the radio.
Interior parts
In order to clearly convey the driver's intention to drive to the car, I would like to pay close attention to the texture and functionality of the cockpit interface.For the interior, we have prepared an airbag-compatible steering wheel that has a casual and sporty sensibility and a shift knob that pursues a stroke feeling during operation.I want you to enjoy the dialogue with the car.
■ Sports steering wheel
A red-colored center mark with a flat bottom shape ... An airbag-compatible product that uses high-quality nappa leather as the material for outstanding sportiness.The elliptical cross-section grip with dimple processing that is not too thick and easy to grip, and the dimple-processed leather and thumb grip that improve holdability are created with details to actively enjoy driving.>> More details
<Main specifications> -Made of nappa leather-SRS airbag system / steering switch compatible-Flat bottom shape
■ Carbon paddle shift lever
Made of high-quality real carbon that is mounted over the mass-produced steering shift switch.Improved operability by moderately increasing the size.The cockpit is made sporty by clarifying the response in sports driving. >> More details
<Main specifications> ・ With AutoExe logo ・ Double-sided tape adhesive type ・ All 4 pieces configuration ・ Overall length 100mm (upper + 25mm lower + 10mm extension compared to mass production)
■ Wide rear view mirror
Frameless type designed exclusively for Mazda vehicles.The blue-coated mirror has a wide field of view up to 1.8 times wider than mass production.The radius of curvature is 3000SR, reducing the parallax with the side mirrors.Contributes to comfortable driving with little viewpoint movement.The smart fitting is attractive. >> More details
<Main specifications> ・Blue chrome surface mirror ・Viewing area about 1.8 times that of mass production ・Curvature radius 3000SR AutoExe logo included
| Product name | 適合 車 種 | part number | Tax-included price (Price without tax) | Spec. | Codes | Reference work time | |
|---|---|---|---|---|---|---|---|
| Sports steering wheel (Nappa leather / red center mark) | Red stitch | All cars ※ 9 | KFA1 V0 310 | ¥49,500 (¥ 45,000) | Flat bottom shape compatible with SRS airbag system / steering switch | D | 0.5 h |
| Carbon paddle shift lever | Vehicles equipped with steering shift switch | A1382-20 | ¥16,280 (¥ 14,800) | Carbon 4-piece construction with AutoExe logo | D | 0.1 h | |
| Shift knob (spherical shape / genuine leather) | Red stitch | All cars | A1350B-03 | ¥19,580 (¥ 17,800) | Diameter: 51mm Overall length: 85mm Weight: 130g Push type | D | 0.2 h |
| Wide rear view mirror | Vehicles equipped with automatic anti-glare rearview mirror (frameless) | A1520 | ¥11,000 (¥ 10,000) | Blue chrome surface mirror Approximately 1.8 times the viewing area mass production ratio Radius of curvature 3000SR | E | 0.1 h |
※ 9 The steering heater is not equipped and will not work.
Goods
Real carbon and suede-like accessories that stand out sporty.Stickers and ornaments that decorate your styling.Please enjoy the coordination with your car in every detail with your sense.
■ Carbon number frame
Autoclave molded dry carbon license plate frame with dramatically improved material and design.UV cut clear coat finish that suppresses deterioration due to ultraviolet rays.A stainless steel AutoExe logo plate is placed in the center. >> More details
<Main specifications> -Autoclave molded dry carbon-UV cut clear coating finish-Stainless steel AutoExe logo plate included
■carbon number bolt
High quality number bolt set using dry carbon for the plate part. Dress up your license plate smartly with the 3-piece configuration of our unique low-head stainless steel bolt/carbon washer.>> More details
<Main specifications> - Made of CFRP (logo plate part: dry carbon) - UV cut clear coating finish - Stainless steel low head bolt - AutoExe logo included - Set of 1 for 3 car
■ Leather key holder
Just fit to the new advanced key.The outer skin is made of black cordovan, which has excellent durability.Soft red cowhide leather is used on the inside to gently wrap the smart key.Handmade specifications jointly planned with the pioneering system notebook brand "ASHFORD". >> More details
<Main specifications> Cordovan (horse leather) Made of cowhide AutoExe/ASHFORD embossed logo
■ Fragment case
Old and new advanced keys/card type keys can be stored.Based on black cordovan, which has excellent durability, perforated leather with red permeation expresses a sporty feeling.With card storage case + key chain.Handmade specifications jointly planned with the pioneering system notebook brand "ASHFORD". >> More details
<Main specifications> Cordovan (horse leather), cow leather, AutoExe/ASHFORD embossed logo
■ Carbon key cover
Dedicated to the new advanced key.Autoclave manufacturing method used for racing car bodies, etc. Made of dry carbon.The texture that makes the most of the texture of the material is attractive. >> More details
<Main specifications> -Made of dry carbon-With AutoExe logo-2-piece configuration-Double-sided tape adhesive type
■ Key case
A high-quality black suede-like key case compatible with conventional advanced keys.A cover type that firmly protects the key body from scratches and impacts.Red stitching and red lines give a sporty and delicate impression. >> More details
<Main specifications> ・ Black suede tone ・ Red stitch ・ With AutoExe logo
■ Car verification case
High-quality black suede-like that smartly stores in-vehicle documents such as vehicle verification, instruction manuals, and maintenance notes.The red stitching, which is unified to the liner inside the case, also enhances the sports mind. >> More details
<Main specifications> -Black suede tone-Red stitch-AutoExe embossed logo-Size: 245 x 180 x 65 mm
■ Ornaments / stickers
You can enjoy it with your own taste.It is also good to dress up with the demo car as a model.
A lineup of high-quality AutoExe logo decorations that make you feel the commitment to driving. >> More details
| Product name | 適合 車 種 | part number | Tax-included price (Price without tax) | Spec. | Codes | Reference work time | |
|---|---|---|---|---|---|---|---|
| Carbon number frame ※ 1 | For front license plate mounting | A1800-20 | ¥18,480 (¥ 16,800) | Made of CFRP (dry carbon) UV cut clear coating finish Comes with stainless steel AutoExe logo plate | D | 0.1 h | |
| carbon number bolt | General-purpose products (excluding character light type license plates) | C9A1 V9 760 | ¥9,350 (¥ 8,500) | Made of CFRP (logo plate part: dry carbon) UV cut clear coating finish Stainless steel low head bolts with AutoExe logo Set of 1 for 3 car | D | 0.1 h | |
| leather key holder | Vehicles equipped with the new advanced key ※ 2 | MAA0005 | ¥19,800 (¥ 18,000) | Made of cordovan (horse leather) and cowhide with AutoExe/ASHFORD embossed logo | F | - | |
| fragment case | General-purpose products | MAA0006 | ¥14,850 (¥ 13,500) | Made of cordovan (horse leather) and cowhide with AutoExe/ASHFORD embossed logo Size: 150mm x 72mm x thickness 5-15mm | F | - | |
| Carbon key cover | Vehicles equipped with the new advanced key ※ 2 | A2650-20 | ¥10,780 (¥ 9,800) | Made of CFRP (dry carbon) with AutoExe logo, 2-piece construction, double-sided tape adhesive type | D | - | |
| key case | Vehicles equipped with advanced keys | A2640-33 | ¥4,180 (¥ 3,800) | Black suede-like red stitching with AutoExe logo.Size: 95mm x 45mm x 20mm | D | - | |
| Car verification case | General-purpose products | A2810-33A | ¥7,480 (¥ 6,800) | Black suede-like red stitch with AutoExe logo Size: 245 x 180 x 65 mm | D | - | |
| Bright ornament | General-purpose products | A12500 | ¥5,280 (¥ 4,800) | Chrome-plated ABS resin double-sided tape adhesive type Size 155mm x 20mm | D | - | |
| ornament | General-purpose products | A12000 | ¥1,980 (¥ 1,800) | Aluminum double-sided tape adhesive type Size 120mm x 24mm | B | - | |
| Message logo sticker | General-purpose products | A11900-03 | ¥880 (¥ 800) | One-touch transfer type Size 158mm x 28mm | B | - | |
| Logo sticker (L) | General-purpose products | silver Red white | A11200-02 A11200-03 A11200-04 | ¥1,320 (¥ 1,200) | Character type without characters Size 550mm x 56mm | B | - |
| Logo sticker (S) | General-purpose products | silver Red white | A11300-02 A11300-03 A11300-04 | ¥660 (¥ 600) | Character type without characters Size 270mm x 28mm | B | - |
※ 1 This product may appear on a part of the in-vehicle monitor screen such as a car equipped with a front camera.
※ 2 The leather key holder (MAA0005) and carbon key cover (A2650-20) cannot be installed at the same time.
CX-8 Parts impression
We are posting the raw voice of the customer who is actually wearing it.
Please refer to the car personalization project.
The ornaments were also properly attached.
- Impressions by vehicle type
- CX-8
- Impressions by parts
- ス タ イ リ ン グ
It has become a powerful form.
- Impressions by vehicle type
- CX-8
- Impressions by parts
- ス タ イ リ ン グ,Intake and exhaust system
The room can be ventilated even on rainy days.
- Impressions by vehicle type
- CX-8
- Impressions by parts
- ー ー テ ィ リ テ テ ー ー
The sound got thicker.
- Impressions by vehicle type
- CX-8
- Impressions by parts
- Intake and exhaust system
