DK-05S

Make the CX-3 a one-of-a-kind existence.
Original design and sports feel.

The CX-3 is a compact size that combines innovative styling and driving.Its classless and high-quality appearance has gained high support as an existence suitable for adult self-expression. The DK-05S maximizes its potential through our unique Kansei tuning.
To a more neat and unique sports form.The combination of the front bumper and grille and the wing-type rear roof spoiler gives it a distinctly different presence from mass production at first glance.
Suspension, which is the highlight of maneuverability, and intake system parts that enhance accelerator response can be installed on various models. While taking advantage of the beauty of the eye point, which is the beauty of SUVs, it improves the sense of stability in driving.Furthermore, the brakes are particular about rigidity, and the operation system that enhances the interface with the driver.Make your CX-3 into a one-of-a-kind one.

Styling kit

● The photo is a sample of two-color painting.For painted parts,please use this form.Please refer to.
● The tires and wheels in the photo are examples of installation.

Front bumper & grill

Bumper grill integrated type that realizes a markless face while maintaining the millimeter wave radar (SBS / MRCC) function. It also supports mass-produced headlamp washers installed in 4WD vehicles.

Rear roof spoiler

A wing type that can be double-mounted without removing the standard rear spoiler. AutoExe ornaments also add a crisp accent.

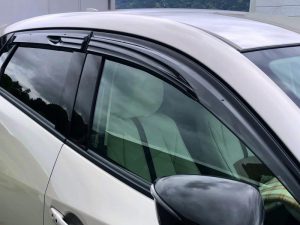

Sports side visor

A high-performance side visor with a ventilation mechanism in addition to rain and sun protection.When the recommended side window is open, the negative pressure generated during driving is used to actively discharge the indoor air.At the same time, it also has the effect of preventing the ingress of rainwater.

The product is compatible with each safety equipment such as millimeter wave radar (SBS / MRCC), but it may not operate properly depending on the weather and driving conditions as well as mass-produced vehicles.


■ For DK-05S Styling Kit CX-3 (DK series)
Product name適合 車 種
(Model list)
part numberTax-included price
(Price without tax)
Spec.CodesReference work
Time
Front bumper & grillDK system ※ 1MDK2F00sold out.Bumper grill integrated FRP (grill part AES) painting required Drilling required Genuine fog lamp tow hook cannot be installedD1.0 h
Fog lamp bracketDK system ※ 2MGJ2010¥12,100
(¥ 11,000)
For front bumper & grill (MDK2F00)
Made of FRP for mounting genuine LED fog lamps
D0.3 h
Rear roof spoilerAll carsMDK2600¥49,500
(¥ 45,000)
Includes AutoExe ornament Made of FRP Painting required Drilling requiredD1.0 h
Sports side visorAll carsDKA1 V3 700¥22,000
(¥ 20,000)
Smoke acrylic resin 4 piece set with ventilation mechanismD0.5 h
※ 1 360°ビュー・モニター装着車に装着不可。またDK8FY、DK8FW、DK8AY、DK8AW、DKLFY、DKLFW、DKLAY、DKLAW、DKEFW、DK5FW/DK5AW-200001~に装着する場合、フォグランプブラケット(MGJ2010)と純正リテーナー(KD49-67-UC5A)×2が別途必要。
※ 2 For DK8FY, DK8FW, DK8AY, DK8AW, DKLFY, DKLFW, DKLAY, DKLAW, DKEFW, DK5FW / DK5AW-200001 ~


DK-05

An additional type front spoiler that can be equipped with LED daytime lamps, a center dual type muffler that lightly tightens around the rear, a wing type rear roof spoiler, etc. A model that has been advanced.

Styling kit

● The photo is a sample of two-color painting.For painted parts,please use this form.Please refer to.
● The tires and wheels in the photo are examples of installation.

mdk2100a
mdk2100b
mdk2100c
a002080a
Specification (2015.1) .pdf
mdk2600a
mdk2600b
mdk2600c
mdk2400a
mdk2400b
PlayBreak
previous arrow
next arrow

mdk2100a
mdk2100b
mdk2100c
a002080a
Specification (2015.1) .pdf
mdk2600a
mdk2600b
mdk2600c
mdk2400a
mdk2400b
previous arrow
next arrow

■ For DK-05 Styling Kit CX-3 (DK series)
Product name適合 車 種
(Model list)
part numberTax-included price
(Price without tax)
Spec.CodesReference work
Time
ー ロ ン ト ス ス ポ イ ラ ー※ 1MDK2100¥60,500
(¥ 55,000)
Made of FRP Painting required Drilling requiredD0.5 h
LED daytime lamp※ 1A002080¥22,000
(¥ 20,000)
For front spoiler (MDK2100) 2 lights on each side With power harness Cannot be installed separately D0.3 h
Rear under panelDiesel 1.5L AT carMDK2400¥30,800
(¥ 28,000)
For vehicles equipped with Premier Tail Muffler Center Dual (MDK8Y50 / 8Y60) Cannot be installed separately Dark gray painted ABS resin drilling required D0.5 h
Rear roof spoilerAll carsMDK2600¥49,500
(¥ 45,000)
Includes AutoExe ornament Made of FRP Painting required Drilling requiredD1.0 h
※ 1 Cannot be installed on vehicles equipped with front-plated garnish.

Functional parts


<For customers considering simultaneous installation when purchasing a new car>
Products such as low-down springs and sports side visors are available as Mazda dealer options.For details, see the Mazda Motor Corporation website.[Accessory lineup]Also, please visit the sales staff of the sales company.


Suspension

"A New Driving Sensation" Suspension is at the core of sporty driving.Our aim is to handle at will beyond the framework of mass-produced vehicles.For drivers who want to enjoy driving positively, it is not just hard and soft, but it provides a street best ride with refined dynamic sensitivity performance such as initial response at the time of steering and transient characteristics of roll. >> Read more

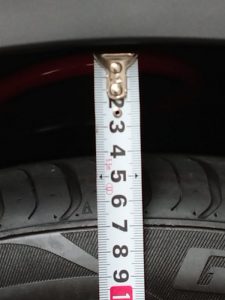

■ Lowdown spring
The styling is sporty and tightened in combination with a mass-produced damper, and the handling is improved by lowering the center of gravity.By suppressing the vehicle height to -20 mm and the spring constant to about 110%, the suspension stroke is secured and comfort is also taken into consideration. >> More details

<Main specifications> ・ Vehicle height: -20mm ・ Spring constant isplease use this form. for more information.

Wearing gallery

■ Sports damper
Although it has the same shape as the mass-produced product, the internal piston adopts a "very low speed valve" that generates precise damping force from the moment it starts moving.It accurately controls changes in the vehicle's posture and achieves a sporty, flat and high-quality ride.It is recommended to use with genuine springs (can be used with lowdown springs).>> More details

<Main specifications> ・ Fixed gas damping force

■ Adjustable stabilizer link
When the vehicle height is down, the angle of the lower arm changes.As a result, the arm angle between the stabilizer and the link becomes an acute angle, which tends to spoil the original stabilizer effect.This product corrects the arm angle when the vehicle height is lowered by adjusting the link length.Optimize the stabilizer function.>> More details

<Main specifications> -Full length adjustable XNUMX-piece set-Front and rear settings.・ Axial mount type

■ Sports stabilizer
The left and right suspension arms are connected by a pipe, and the spring effect suppresses the amount of roll.Controllability during cornering is maintained by increasing the spring constant appropriately.It is especially effective when increasing the size of tires to high grip tires.For the front. >> More details

<Main specifications> ・ For front ・ Solid Φ23.0 ・ Uses genuine mount

Product name適合 車 種
(Model list)
part numberTax-included price
(Price without tax)
Spec.CodesReference work time
Low down springDiesel 2WD car※ 1


Gasoline 2WD car※ 1


Gasoline 4WD car※ 1

DKA1 V5 720


DKA2 V5 720


DKA3 V5 720
¥41,800
(¥ 38,000)
Vehicle height -20mm
Spring constant: Fr: 29.1 Rr: 26.2N / mm

Vehicle height -20mm
Spring constant: Fr: 26.3 Rr: 27.5N / mm

Vehicle height -20mm
Spring constant: Fr: 27.9 Rr: 40.6N / mm
D1.8 h


1.8 h


2.2 h
Sports damper2WD car ※ 4MDK7700¥77,000
(¥ 70,000)
Fixed damping force
Compatible with mass-produced springs / AutoExe springs
D1.5 h
Adjustable stabilizer link frontAll cars ※ 2MDE760524,200JPY
(¥ 22,000)
Full length adjustable left and right set of 2D0.5 h
Sports stabilizer frontDK8FY, DK8FW, DK8AY, DK8AW, DKLFY, DKLFW, DKLAY, DKLAW, DKEFW / DKEAW-200001 ~※ 3MDJ760028,600JPY
(¥ 26,000)
Solid φ22.0 Spring constant (compared to mass-produced vehicles) 128%D2.5 h

※ 1 When installed in a car with a 360 ° view monitor, it may be necessary to adjust the aiming of the camera.
※ 2 When installing the Street Sports Suspension Kit (MDK7860), it is not necessary to install the same product due to its functionality.
※ 3 A genuine stabilizer bush (KD61-34-156F) x 2 is required for installation.
※ 4 DK8FY、DK8FW、DKLFY、DKLFW、DKEFW-200001~の純正18インチタイヤ装着車に装着する場合、純正バンプストッパー(D10E-34-111)×2、純正マウンティングラバー(DA6A-28-380)×2、純正バンプストッパー(D24H-28-1A0A)×2が別途必要。


Bodysuit

In order to enhance the sense of unity between the driver and the car, tuning to train the body is the basis.By suppressing slight distortion of each part of the body due to input from the road surface such as during cornering, the movement of the suspension initial operating area absorbed by the distortion is drawn out, and handling with a direct feeling without delay of reaction from the moment when the steering is started Contribute to. >> Read more

■ Strut tower bar
The first step to reinforce the body connecting the left and right strut towers.The steel oval shaft and one-piece structure, which are advantageous in terms of rigidity, ensure the highest level of strength for a general tower bar.It is effective when installed separately, but it is best used in combination with a floor crossbar. >> More details

<Main specifications> -Steel oval shaft 2-piece structure XNUMX-point type

Wearing gallery

■ Center floor bar
It suppresses distortion near the center of the body monocoque, which cannot be compensated by strut tower bars and floor crossbars, and compensates for the "annular structure" effect of the SKYACTIV body.I try to have a low center of gravity layout that does not sacrifice the leg space of the rear seats as much as possible.  >> More details

<Main specifications> -Steel oval shaft 1-piece structure 4-point type

Wearing gallery

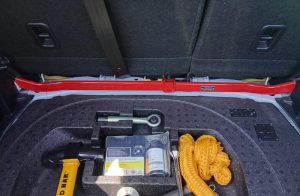

■ Floor crossbar
An item that works like a rear tower bar by connecting the left and right sides of the rear floor.It is also a nice point to be able to utilize the high-strength seat mounting point to install it without sacrificing the utility of the luggage room at all.  >> More details

<Main specifications> -Steel oval shaft 2-piece structure 3-point type

Wearing gallery

■ Lower arm bar
By connecting the bases of the left and right lower arms, which are the suspension mounting base points, with steel oval pipes, minute alignment changes are suppressed.Improves the feeling of handling. >> More details

<Main specifications> -Steel oval shaft 1-piece structure 2-point type

Wearing gallery

Product name適合 車 種part numberTax-included price
(Price without tax)
Spec.CodesReference work time
Strut tower bar frontAll carsDJA1 V5 420¥29,700
(¥ 27,000)
Steel 1-piece structure 2-point typeD0.5 h
Center floor barAll carsMDK4D00¥35,200
(¥ 32,000)
Steel 1-piece structure 4-point typeD0.5 h
Floor crossbar rearAll carsMDK4500A¥19,800
(¥ 18,000)
Steel 2-piece structure 3-point typeD0.8 h
Lower arm bar front All cars ※ 1MDK4B00A¥19,800
(¥ 18,000)
Steel 1-piece structure 2-point typeD0.5 h
Member brace setDiesel Car ※ 1MDK4700sold out.Steel 3-piece structure 10-point front and rear setD1.5 h

※ 1 The member brace set and lower arm bar cannot be installed at the same time.


Intake & Exhaust

In the intake / exhaust tune, which is directly linked to the pleasure of driving, the point is not to improve the peak power, but to react to instantly convey the driver's intention to the car.The accelerator response has been refined based on the air filter and muffler with moderately reduced resistance.The restrained sports sound also deepens communication between the driver and the car. >> Read more

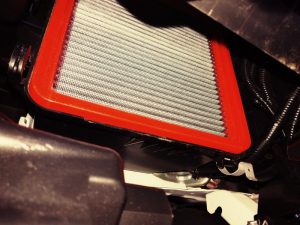

■ Air filter replacement
Utilizing the air cleaner case of mass-produced cars, replacing only the filter part effectively improves the accelerator response.The dry filter, which has a good balance between ventilation performance and dust collection effect, is a disposable type that has little effect on the air flow sensor and is easy to maintain. >> More details

<Main specifications> ・ Dry type ・ Disposable (disposable) type

■ Sports induction box
Use the air cleaner box of a mass-produced car to replace the case on the suction side.Directly guides fresh air to the air filter to improve intake efficiency.The sound also changes to sports-like.Further increase efficiency by combining with the optional K & N air filter. >> More details

<Main specifications> -Funnel type FRP frame + aluminum heat shield

Wearing gallery

■ Ram air intake system
A high-end intake system that pursues efficiency and looks.The area of ​​the intake port of the fresh air duct has been expanded by 20% while following the basic layout of mass production that is not easily affected by the radiant heat of the radiator.By combining a 3-piece duct / large cleaner box with a straight path as much as possible and a dedicated cylindrical filter, the filling efficiency corresponding to the increased air is improved.Improves power and torque from the normal range.The appearance made of real carbon is also high quality.Compatible with diesel vehicles. >> More details

<Main specifications>・Carbon air duct + dedicated air filter

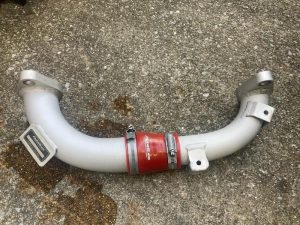

■ Intake suction kit
Specifications that secure the maximum effective flow path area of ​​intake air and reduce intake resistance.The material used is multi-layer polystar silicon, which has a high effect of suppressing deformation due to negative suction pressure.As a result, the accelerator response has been improved.The crimson coloring adds an accent to the engine room.>> More details

<Main specifications> ・ Made of 4-layer polystar silicon

Wearing gallery

■ Premier tail muffler
A series with a sophisticated and profound feeling. The 110X95mm oval-shaped tail end has a very mature texture.With a large-capacity straight structure silencer that has been carefully tuned for a narrow main pipe diameter and internal structure, it achieves both improved accelerator response from the practical range and a gentle sports sound that suppresses the noise of the room. >> More details

<Main specifications> ・ Stainless steel ・ Straight structure silencer ・ Main diameter: Φ50.8 ・ Tail diameter: Φ110 × 95 × 2 ・ Weight: 9.5kg (2WD vehicle) /9.0kg (4WD vehicle) /11.7kg (gasoline vehicle) ) ・ Safety standard compliant product

[Sound library for audition] * You can compare it with the mass-produced muffler recorded under the same conditions.It may not be accurate due to the characteristics of the playback environment, but please watch it as a reference for changes in sound quality and volume.

Wearing gallery

■ Premier Tail Muffler Center Dual
Two oval-shaped tail ends are placed in the center.By installing it as a set with a dedicated rear under panel, it creates a sense of specialty and power.Cannot be installed independently. Designed exclusively for 2WD / 2WD. >> More details

<Main specifications> ・ Stainless steel ・ Straight structure silencer ・ Pipe diameter: Ф50.8 ・ Tail diameter: Ф110 × 95 × 2 ・ Suitable for safety standards

■ Rear under panel
A set with a premier tail muffler.At the same time as covering the notch at the outlet of the mass-produced muffler, it realizes a rear view with a sense of unity with the muffler.

<Main specifications> -Dark gray painted-ABS resin

■ Exhaust finisher
A finisher that bolts on to the tail end of the genuine muffler.The oval shape, which is composed of thick and beautiful curves, renews the image of the conventional muffler cutter.It is ideal for users who want to add fashionability while keeping the genuine muffler.>> More details

<Main specifications> -Stainless steel-Set of 95 left and right-Tail Φ80 x XNUMX oval-AutoExe logo included

Wearing gallery

Product name適合 車 種
(Model list)
part numberTax-included price
(Price without tax)
Spec.CodesReference work time
Air filter replacementDiesel 1.8L car


Diesel 1.5L car
/ Gasoline 1.5L car

Gasoline 2.0L car
MBP9A00


MBM9A00


MDK9A00
¥9,350
(¥ 8,500)

¥9,350
(¥ 8,500)

¥10,450
(¥ 9,500)
Dry-type disposable (disposable) typeD0.3 h
Sports induction boxNo filter


With filter
Diesel 1.5L car


Diesel 1.5L car
MDJ957


MDJ957X
¥33,000
(¥ 30,000)

¥44,000
(¥ 40,000)
Funnel type FRP frame + aluminum heat shield

Funnel type FRP frame + aluminum heat shield K & N air filter included
D1.0 h
Ram air intake systemDiesel 1.5L carMDK9590¥104,500
(¥ 95,000)
Carbon air duct + carbon / FRP box Dedicated K & N air filter includedF1.0 h
Intake suction kitDiesel 1.8L car


Diesel 1.5L car


Gasoline 1.5L car
MBP9600


MDJ961


MBM962
¥19,800
(¥ 18,000)

¥16,500
(¥ 15,000)

¥17,600
(¥ 16,000)
Silicone hoseD0.2 h

0.2 h

0.3 h
Premier tail muffler Mass production layoutDiesel 1.5L 2WD AT car

Diesel 1.5L 4WD AT car

Gasoline 1.5L 2WD vehicle (for DKLFY only)
MDK8Y00


MDK8Y10


DKA1 V5 810

sold out.

¥97,900
(¥ 89,000)

¥118,800
(¥ 108,000)

Stainless steel main pipe diameter φ50.8 Tail diameter 110 × 95mm (× 2)

Stainless steel main pipe diameter φ50.8 Tail diameter 110 × 95mm (× 2)

Stainless steel main pipe diameter φ50.8 Tail diameter 110 × 95mm (× 2)
D0.7 h
Premier tail muffler Center dualDK5FW AT car ※ 1MDK8Y50sold out.Stainless steel main pipe diameter φ50.8 Tail diameter 110 × 95mm (× 2)D0.8 h
Rear under panel
(For installing the center dual muffler)
Diesel 1.5L AT car ※ 1MDK2400¥30,800
(¥ 28,000)
Made of dark gray painted ABS resin Drilling requiredD0.5 h
Exhaust finisherAll carsMGH8A00¥38,500
(¥ 35,000)
Set of 2 with AutoExe logo for mounting genuine stainless steel mufflerD0.2 h

※ 1 Cannot be installed separately.It is necessary to install the premier tail muffler center dual (MDK8Y50 / 8Y60) and the rear under panel (MDK2400) at the same time.


Brake

The first thing that is required of a brake is the ability to stop safely.And in order to enjoy running freely, controllability that can decelerate at will is required.The brake pad, which has a small change in the coefficient of friction (μ) even during continuous braking, and the brace, which increases the rigidity of the pedal mounting part and eliminates the delay in effectiveness, realizes the effect of synchronizing with the driver's sensibility.>> Read more

■ Street sports brake pads
The aim is "deceleration at will".Designed with an emphasis on stable effectiveness during continuous braking, delicate load transfer in cornering, and flexible control of vehicle speed, rather than simply stopping performance.Focus on the amount of change and how to change the coefficient of friction (μ), which constantly changes depending on various conditions such as pedaling force, speed, and temperature.The "transient characteristics of μ" required by sports-oriented drivers realizes a taste that is synchronized with the sensibilities. >> More details

<Main specifications> ・ Non-asbestos friction material ・ Rotor proper temperature: 0 to 400 ℃

■ Street brake rotor
Mass-produced XNUMX-piece structure with the same shape FC Cast iron, but with improved strength by controlling the content of carbon and silicon.Further heat treatment is applied to stabilize the metal connective tissue.It suppresses distortion due to heat and improves fade resistance and crack resistance. >> More details

<Main specifications> ・ 6 slits on one side ・ 1 piece type

■ Brake pedal brace
The bracket of the pedal mounting part, which causes slight distortion during brake operation, is three-dimensionally reinforced with steel braces to ensure rigidity.It improves the delay in reaction from when the pedal is pressed until the brake is applied, and contributes to a direct effect. >> More details

<Main specifications> -Steel 2-piece structure

Product name適合 車 種
(Model list)
part numberTax-included price
(Price without tax)
Spec.CodesReference work time
Street sports brake pads frontAll carsMBM5A10¥16,500
(¥ 15,000)
Non-asbestos rotor Appropriate temperature: 0-400 ℃D0.5 h
Street sports brake pads rearCar after minor change ※ 1

Car before minor change ※ 2
MBM5A21

MKE5A20
¥14,300
(¥ 13,000)
Non-asbestos rotor Appropriate temperature: 0-400 ℃D0.5 h
Street brake rotorfront2WD car


4WD car
MBM5A50


MDK5A50
¥44,000
(¥ 40,000)

¥46,200
(¥ 42,000)
1 piece type with cleaning slit Left and right 2 pieces setD1.0 h
Street brake rotorrearCar after minor change ※ 1

Car before minor change ※ 2
MBM5A55

MDK5A55
¥41,800
(¥ 38,000)
1 piece type with cleaning slit Left and right 2 pieces setD1.0 h
Brake pedal braceAll carsMDJ4950¥19,800
(¥ 18,000)
Steel 2-piece configurationD0.6 h

※ 1 For DK8FY, DK8FW, DK8AY, DK8AW, DKLFY, DKLFW, DKLAY, DKLAW, DKEFW / DKEAW-200001 ~.
※ 2 For DK5FW, DK5AW, DKEFW / DKEAW-~ 199999.


Engine & Drivetrain

A group of parts that draws out the full potential of the engine and converts it into traction.A sports clutch set and flywheel that support a pleasant gear change.Limited slip differential, which allows you to actively enjoy the change in the posture of the car when cornering, has created transient characteristics that eliminate sudden movements as much as possible while enhancing the direct feeling with the car.

■ Sports clutch line
Uses stainless mesh PTFE (Teflon), which has less deterioration due to heat and aging and less expansion due to hydraulic pressure than the rubber used in mass-produced vehicles.Contributes to a direct clutch feel.In addition, PVC coating is applied to protect the hose for safety. >> More details

<Main specifications> -Stainless steel mesh PTFE + PVC coating

■ Sports oil filter
Fine sludge is removed by using a high-efficiency filter medium.By expanding the filtration area by about 5% compared to mass production, filtration efficiency is improved and pressure loss is reduced.Furthermore, by incorporating a powerful neodymium magnet, metal wear debris is captured without missing.It balances the functions required for oil filters at a high level.Dedicated to gasoline engine vehicles. >> More details

<Main specifications> ・ Built-in strong magnet ・ Filtration area expanded by about 5% compared to mass production

■ Turbo pipe
By optimizing the layout of the turbo pipe that guides the air supercharged by the turbine to the intercooler, and combining the aluminum elbow pipe whose inner wall is mirrored as much as possible and the 4-layer polyster silicon that has a high deformation suppressing effect, the hose expands due to pressurization. And suppresses the resistance of the air flow path.As a result, the boost pressure rises faster and turbo lag is reduced.Improve the response from the beginning of stepping on the accelerator.The product comes with a gasket required for installation. >> More details

<Main specifications> -Aluminum pipe (anodized) + silicon hose / band / gasket included

Product name適合 車 種part numberTax-included price
(Price without tax)
Spec.CodesReference work time
Sports clutch lineMT carMDJ650011,000JPY
(¥ 10,000)
Stainless mesh PTFE hose + PVC coatingD0.5 h
Sports oil filterGasoline carA001823,080JPY
(¥ 2,800)
Built-in strong magnet Filtration area expanded by about 5% compared to mass productionD0.1 h
Turbo pipeDiesel 1.8L car


Diesel 1.5L car
MBP3960


MDJ3960A
52,800JPY
(¥ 48,000)

46,200JPY
(¥ 42,000)
Aluminum pipe (anodized finish) Silicon hose / band / gasket includedD0.8 h


Utility

In order to enjoy everyday driving, I want to pay attention not only to running but also to the texture and usability of the appearance.Please also pay attention to utility items with functionality not found in mass-produced cars, such as a side visor with a ventilation mechanism that tightens the style with a sporty aero form.

■ Oil filler cap
The oil filler cap has been changed from genuine resin to 52S aluminum, which is fully machined and full of craftsmanship.Brilliant red alumite processing is applied to give a mechanical and gorgeous accent to the engine room.The laser-engraved AutoExe logo is also a delicate impression. >> More details

<Main specifications> ・ 52S aluminum fully machined ・ Red alumite processing ・ Laser engraved with AutoExe logo

■ Oil level gauge grip
An item that replaces the resin grip of a mass-produced oil level gauge with aluminum, which is full of craftsmanship.Red alumite processing and laser engraved AutoExe logo give the engine room a mechanical and gorgeous accent.DIY installation is possible with the attached dedicated tool. Compatible with a wide range of vehicles equipped with the SKYACTIV engine. >> More details

<Main specifications> -Aluminum-Red alumite-With AutoExe logo-Includes a dedicated tool for mounting

■ Brake fluid cap
The resin mass-produced brake fluid tank cap has been upgraded to aluminum, which is full of craftsmanship.Red alumite processing and laser engraved AutoExe logo give the engine room a mechanical and gorgeous accent.Combined with an oil filler cap and level gauge grip with the same design, it accelerates the total coordination of the engine room. >> More details

<Main specifications> -Aluminum-Fully machined-Red alumite processing-Laser engraved AutoExe logo included

■ Fuel cap cover
An ABS cover that can be attached over a mass-produced fuel cap.The design with cap bolts on bright Exe Red gives a gorgeous impression to the fuel filler port. With AutoExe logo.Compatible with a wide range of current Mazda vehicles. >> More details

<Main specifications> ・ ABS red painted ・ With decorative cap bolt ・ With AutoExe logo ・ Double-sided tape attached ・ Fuel label / erroneous oil supply prevention reminder sticker included

■ Optima Battery
Synonymous with maintenance-free batteries, which boast a longer life than conventional open-type batteries.It is a completely sealed type that uses the original spiral cell technology, so there is no need to replenish the battery fluid.Provides a stable current even under high load.Can be installed without using additional adapters.>> More details

<Main specifications> -Maintenance-free type made by Optima Battery

■ Battery clamp
Playful in the engine room. Made of one-piece steel designed with the image of an AutoExe strut tower bar.The bright red color and logo plate have been faithfully reproduced.>> More details

<Main specifications> -Steel red paint-With AutoExe ornament

■ Aero sports wiper blade
An aero type wiper blade is used for the main body.By adding a deflector with fins, the arm joint is aero-formed.The wind pressure generated during driving is positively received and the wiper lift is suppressed.The blade rubber is evenly adhered to the glass surface to improve visibility when driving at high speeds in the rain. >> More details

<Main specifications> ・ Driver side: 550mm ・ Passenger seat side: 450mm ・ Twin rail type

■ Sports side visor
A high-performance side visor with a ventilation mechanism in addition to rain and sun protection.When the recommended side window is open, the negative pressure generated during driving is used to actively discharge the indoor air.At the same time, it also has the effect of preventing the ingress of rainwater.>> More details

<Main specifications> -Smoke type acrylic resin-Set of 4 left and right with AutoExe logo

Wearing gallery

■ Door handle cover & protector set
A carbon-like matte design that protects the fragile door handle and gives it a sporty look.Pursuing high-quality details and achieving a natural and unified fitting.A package for one unit is available, and the door handle and protector can be purchased separately. >> More details

<Main specifications> ・ Carbon tone ・ Weather resistant ABS cover x 4 ・ PVC protector x 4 ・ One set

antenna garnish
A dress-up item that makes the mass-produced shark fin antenna look fearless with its mechanical carbon pattern and AutoExe logo. The material is flexible PVC, and double-sided tape can be easily attached to the antenna body. *The antenna body is not included in the product.>> More details

<Main specifications> ・Carbon tone ・AutoExe logo included ・Made of PVC with double-sided tape ・Set of 2 left and right

■ Wheel nut set
Irregular heptagonal (heptagonal) small diameter type with an aluminum end cap with the AutoExe logo.The main body is made of high-strength black-painted chrome vanadium steel that does not easily loosen at high temperatures.The knurled red-colored aluminum end cap adds a subtle and sophisticated accent to your car's footwell.>> More details

<Main specifications> - Body: Made of chrome vanadium steel, black paint - Cap: Made of aluminum, red anodized + clear paint - AutoExe logo included - Irregular heptagon type, special adapter wrench included

Product name適合 車 種part numberTax-included price
(Price without tax)
Spec.CodesReference work time
Oil filler capAll carsA1400-03¥6,380
(¥ 5,800)
One-touch type Aluminum red alumite with AutoExe logoD0.1 h
Oil level gauge gripAll carsA1450-03¥6,380
(¥ 5,800)
Aluminum red alumite with AutoExe logo
Dedicated tool for mounting included
D0.2 h
Brake fluid capAll carsA1900-03¥7,480
(¥ 6,800)
Aluminum red alumite with AutoExe logoD0.1 h
Fuel cap coverAll carsA1600-03A5,280JPY
(¥ 4,800)
ABS red painted decorative cap with bolt AutoExe logoD0.1 h
Optima batteryDiesel Car
Gasoline i-ELOOP no car

Car with gasoline i-ELOOP
A01200


A01310
¥62,920
(¥ 57,200)

¥53,900
(¥ 49,000)
Color: Yellow TopF0.3 h
Battery clampi-ELOOP without car (excluding DKLFY/DKLAY/DK8FY/DK8AY)A1700¥7,480
(¥ 6,800)
Steel red paint with AutoExe logoD0.1 h
Aero sports wiper bladeAll carsMDK0250¥9,680
(¥ 8,800)
Equipped with a large wind deflector Water repellent glass compatible Front left and right set of 2D0.1 h
Bonnet damperAll carsMDK2960sold out.High-pressure gas-filled damper + dedicated mounting bracket Set of 2 left and rightD1.0 h
Sports side visorAll carsDKA1 V3 700¥22,000
(¥ 20,000)
Smoke acrylic resin 4 piece set with ventilation mechanismD0.5 h
Door handle cover & protector setAll carsKFA1 V3 110¥29,260
(¥ 26,600)
Carbon-like weatherproof ABS cover x 4 PVC protector x 4 XNUMX setD1.0 h
antenna garnishAll cars※ 1DJA1 V3 040¥8,800
(¥ 8,000)
Carbon-like PVC with AutoExe logo, double-sided tape attached, left and right set of 2D0.3 h
Wheel nut setAll carsC9A1 V9 770¥16,280
(¥ 14,800)
Includes a dedicated adapter wrench for mounting the Heptagon type with the AutoExe logoD0.3 h

※ 1 Sensitivity may decrease depending on the reception conditions when listening to the radio.


Interior parts

In order to clearly convey the driver's intention to drive to the car, I would like to pay close attention to the texture and functionality of the cockpit interface.For the interior, we have prepared an airbag-compatible steering wheel that has a casual and sporty sensibility and a shift knob that pursues a stroke feeling during operation.I want you to enjoy the dialogue with the car.

■ Sports steering wheel(Nappa leather)
A red-colored center mark with a flat bottom shape ... An airbag-compatible product that uses high-quality nappa leather as the material for outstanding sportiness.The elliptical cross-section grip with dimple processing that is not too thick and easy to grip, and the dimple-processed leather and thumb grip that improve holdability are created with details to actively enjoy driving.>> More details

<Main specifications> -Made of nappa leather-SRS airbag system / steering switch compatible-Flat bottom shape

■ Sports steering wheel (genuine leather)
Sporty flat bottom shape.Specifications that are particular about details such as an oval cross-section grip that is not too thick and easy to grip, and a thumb grip that suppresses slippage.With an emphasis on operability and visibility, the diameter is 370 mm, which is the same as mass-produced vehicles.>> More details

<Main specifications> -Flat bottom with a diameter of 370 mm-Red stitch-Compatible with genuine airbags / steering switches-Trade-in type

■ Carbon paddle shift lever
Made of high-quality real carbon that is mounted over the mass-produced steering shift switch.Improved operability by moderately increasing the size.The cockpit is made sporty by clarifying the response in sports driving. >> More details

<Main specifications> ・ With AutoExe logo ・ Double-sided tape adhesive type ・ All 4 pieces configuration ・ Overall length 100mm (upper + 25mm lower + 10mm extension compared to mass production)

■ Shift knob (spherical shape / genuine leather)
Designed exclusively for straight AT vehicles, with a focus on the stroke feeling when the shift lock is released.The clean appearance and operability of mass-produced products without the unlock button are attractive.Push the upper end of the shift knob during operation.Shift the knob as it is.>> More details

<Main specifications> -For AT cars (straight type) -Made of genuine leather-Weight: 130g

■ Shift knob (spherical shape / genuine leather)
Made of genuine leather with a diameter of 51 mm with an emphasis on operability.A shift knob that fits easily in the palm of your hand and can be gripped on either the top or the side.You can adjust the height according to your physique and taste.AutoExe logo on the top.>> More details

<Main specifications> -For MT vehicles-Made of genuine leather-Screw size MT vehicles: M10 x 1.25-Weight: 190g

■ Shift knob (genuine leather)
Small diameter size with a diameter of 42 mm.A shift knob that fits easily in the palm of your hand and can be gripped on either the top or the side.You can adjust the height according to your physique and taste.Two types of stitches, red stitch and black stitch, can be selected.AutoExe logo on the top. >> More details

<Main specifications> -For MT vehicles-Made of genuine leather-Screw size MT vehicles: M10 x 1.25-Weight: 190g

Product name適合 車 種
(Model list)
part numberTax-included price
(Price without tax)
Spec.CodesReference work time
Sports steering wheel
(Nappa leather / red center mark)
Red stitchDK series (excluding DK5FW/DK5AW-~199999) ※ 1KFA1 V0 310¥49,500
(¥ 45,000)
Flat bottom shape compatible with SRS airbag system / steering switchD0.5 h
Sports steering wheel
(Genuine Leather)
Red stitchDK5FW / DK5AW-~ 199999
MBM1370-03
¥41,800
(¥ 38,000)
Genuine SRS airbag system / steering switch compatible flat bottom shapeD0.5 h
Carbon paddle shift leverVehicles equipped with steering shift switchA1382-20¥16,280
(¥ 14,800)
Carbon 4-piece construction with AutoExe logoD0.1 h
Shift knob (spherical shape / genuine leather)Red stitchAT car


MT car
A1350B-03


A1341-03
¥19,580
(¥ 17,800)

¥9,900
(¥ 9,000)
Diameter: 51mm Overall length: 85mm Adjustable
Weight: 130g Push type

Screw diameter: M10 x 1.25 Diameter: 51mm
Overall length: 70-88 mm adjustable Weight: 190 g
D


D
0.2 h


0.1 h
Shift knob (genuine leather)Red stitch

Black stitch
MT car

MT car
A1396-03

A1396-08
¥9,680
(¥ 8,800)
Screw diameter: M10 x 1.25 Diameter: 42mm
Overall length: 73-91 mm adjustable Weight: 190 g
D0.1 h

※ 1 The steering heater is not equipped and will not work.


Goods

Real carbon and suede-like accessories that stand out sporty.Stickers and ornaments that decorate your styling.Please enjoy the coordination with your car in every detail with your sense.

■ Carbon number frame
Autoclave molded dry carbon license plate frame with dramatically improved material and design.UV cut clear coat finish that suppresses deterioration due to ultraviolet rays.A stainless steel AutoExe logo plate is placed in the center. >> More details

<Main specifications> -Autoclave molded dry carbon-UV cut clear coating finish-Stainless steel AutoExe logo plate included

carbon number bolt
High quality number bolt set using dry carbon for the plate part. Dress up your license plate smartly with the 3-piece configuration of our unique low-head stainless steel bolt/carbon washer.>> More details

<Main specifications> - Made of CFRP (logo plate part: dry carbon) - UV cut clear coating finish - Stainless steel low head bolt - AutoExe logo included - Set of 1 for 3 car

■ Leather key holder
Just fit to the new advanced key.The outer skin is made of black cordovan, which has excellent durability.Soft red cowhide leather is used on the inside to gently wrap the smart key.Handmade specifications jointly planned with the pioneering system notebook brand "ASHFORD". >> More details

<Main specifications> Cordovan (horse leather) Made of cowhide AutoExe/ASHFORD embossed logo

■ Fragment case
Old and new advanced keys/card type keys can be stored.Based on black cordovan, which has excellent durability, perforated leather with red permeation expresses a sporty feeling.With card storage case + key chain.Handmade specifications jointly planned with the pioneering system notebook brand "ASHFORD". >> More details

<Main specifications> Cordovan (horse leather), cow leather, AutoExe/ASHFORD embossed logo

■ Carbon key cover
Dedicated to the new advanced key.Autoclave manufacturing method used for racing car bodies, etc. Made of dry carbon.The texture that makes the most of the texture of the material is attractive. >> More details

<Main specifications> -Made of dry carbon-With AutoExe logo-2-piece configuration-Double-sided tape adhesive type

■ Key case
A high-quality black suede-like key case compatible with conventional advanced keys.A cover type that firmly protects the key body from scratches and impacts.Red stitching and red lines give a sporty and delicate impression. >> More details

<Main specifications> ・ Black suede tone ・ Red stitch ・ With AutoExe logo

■ Car verification case
High-quality black suede-like that smartly stores in-vehicle documents such as vehicle verification, instruction manuals, and maintenance notes.The red stitching, which is unified to the liner inside the case, also enhances the sports mind. >> More details

<Main specifications> -Black suede tone-Red stitch-AutoExe embossed logo-Size: 245 x 180 x 65 mm

■ Ornaments / stickers
You can enjoy it with your own taste.It is also good to dress up with the demo car as a model.
A lineup of high-quality AutoExe logo decorations that make you feel the commitment to driving. >> More details

Product name適合 車 種part numberTax-included price
(Price without tax)
Spec.CodesReference work time
Carbon number frame ※ 1For front license plate mountingA1800-20¥18,480
(¥ 16,800)
Made of CFRP (dry carbon) UV cut clear coating finish Comes with stainless steel AutoExe logo plateD0.1 h
carbon number boltGeneral-purpose products (excluding character light type license plates)C9A1 V9 760¥9,350
(¥ 8,500)
Made of CFRP (logo plate part: dry carbon) UV cut clear coating finish Stainless steel low head bolts with AutoExe logo Set of 1 for 3 carD0.1 h
leather key holderVehicles equipped with the new advanced key ※ 2MAA0005¥19,800
(¥ 18,000)
Made of cordovan (horse leather) and cowhide with AutoExe/ASHFORD embossed logoF-
fragment caseGeneral-purpose productsMAA0006¥14,850
(¥ 13,500)
Made of cordovan (horse leather) and cowhide with AutoExe/ASHFORD embossed logo Size: 150mm x 72mm x thickness 5-15mmF-
Carbon key coverVehicles equipped with the new advanced key ※ 2A2650-20¥10,780
(¥ 9,800)
Made of CFRP (dry carbon) with AutoExe logo, 2-piece construction, double-sided tape adhesive typeD-
key caseVehicles equipped with advanced keysA2640-33¥4,180
(¥ 3,800)
Black suede-like red stitching with AutoExe logo.Size: 95mm x 45mm x 20mmD-
Car verification caseGeneral-purpose productsA2810-33A¥7,480
(¥ 6,800)
Black suede-like red stitch with AutoExe logo Size: 245 x 180 x 65 mmD-
Bright ornamentGeneral-purpose productsA12500¥5,280
(¥ 4,800)
Chrome-plated ABS resin double-sided tape adhesive type Size 155mm x 20mmD-
ornamentGeneral-purpose productsA12000¥1,980
(¥ 1,800)
Aluminum double-sided tape adhesive type Size 120mm x 24mmB-
Message logo stickerGeneral-purpose productsA11900-03¥880
(¥ 800)
One-touch transfer type Size 158mm x 28mmB-
Logo sticker (L)General-purpose productssilver

Red

white
A11200-02

A11200-03

A11200-04
¥1,320
(¥ 1,200)
Character type without characters Size 550mm x 56mmB-
Logo sticker (S)General-purpose productssilver

Red

white
A11300-02

A11300-03

A11300-04
¥660
(¥ 600)
Character type without characters Size 270mm x 28mmB-

※ 1 This product may appear on a part of the in-vehicle monitor screen such as a car equipped with a front camera.
※ 2 The leather key holder (MAA0005) and carbon key cover (A2650-20) cannot be installed at the same time.

CX-3 Parts impression

We are posting the raw voice of the customer who is actually wearing it.
Please refer to the car personalization project.

CX-3
The inside of the engine room is gorgeous.
Impressions by vehicle type
CX-3
Impressions by parts
ー ー テ ィ リ テ テ ー ー
CX-3
It stands out and looks cool in red.
Impressions by vehicle type
CX-3
Impressions by parts
ー ー テ ィ リ テ テ ー ー
CX-3
Lacey is increasing.
Impressions by vehicle type
CX-3
Impressions by parts
Interior
CX-3
The blowing up has improved.
Impressions by vehicle type
CX-3
Impressions by parts
Intake and exhaust system
CX-3
The sound changes.
Impressions by vehicle type
CX-3
Impressions by parts
Intake and exhaust system
CX-3
Easily open and close with one hand.
Impressions by vehicle type
CX-3
Impressions by parts
ー ー テ ィ リ テ テ ー ー
CX-3
It's great to see and touch.
Impressions by vehicle type
CX-3
Impressions by parts
Goods
CX-3
Red is more noticeable.
Impressions by vehicle type
CX-3
Impressions by parts
ー ー テ ィ リ テ テ ー ー
CX-3
The red spring is stylish.
Impressions by vehicle type
CX-3
Impressions by parts
Suspension
CX-3
Improved corner stability when driving at high speeds.
Impressions by vehicle type
CX-3
Impressions by parts
ボ デ ィ,Intake and exhaust system
CX-3
It looks and feels much better to push.
Impressions by vehicle type
CX-3
Impressions by parts
Interior
CX-3
Easy to wipe off.
Impressions by vehicle type
CX-3
Impressions by parts
ー ー テ ィ リ テ テ ー ー
