This is the CX-30 Sport Grade.
Complete tune DM-06.

A new-generation crossover CX-30 that condenses excellent design, running, and comfort in a just-sized body.The goodness of the total balance has gained high support from users who have a definite eye for selection.However, as new SUVs competing for individuality appear one after another, there is a feeling that they lack a decisive factor.For those who want more style and driving, especially those who have high expectations for the new generation of Mazda cars, we would like to propose a prominent sports version of the CX-30, which can be said to be the top grade.
A total of 5 full kits including the marked front grille are available as styling kits.A part of the pear-skin texture of the bottom line (below) is made into a glossy piano black specification to create a fearless appearance.
The functional parts include a street sports suspension kit that refines the transient characteristics of roll to achieve a deeper ride, a full body reinforcement system including member braces and motion control beams, and a ram air intake system that improves accelerator response. Improved intake and exhaust system, etc. The DM-06 maintains the virtues of a mass-produced car while training its entire body with a complete tune based on the car model. We will guide your CX-30 into a sports crossover with beauty and potential.


Styling kit

● The tires and wheels in the photo are examples of installation.


Front grill

Trade in the Mazda emblem.Fin type with piano black on the surface and matte black paint on the recesses. Includes AutoExe ornament.

Front under spoiler

Attached by covering the satin part of the mass-produced bumper.The wedge shape at the tip of the wing adds graceful strength.Piano black painted.

Side under spoiler

It is attached to the satin part of the mass-produced side view to add a sense of stability to the bottom line.Piano black painted. Includes AutoExe ornament.

Rear under spoiler

Diffuser type piano black painted product that is attached to the satin part of mass-produced bumpers.Tighten the rear view with the rear roof spoiler.

Rear roof spoiler

A wing type that is double-mounted on a mass-produced rear spoiler. Includes AutoExe ornament.Piano black Painted / unpainted products are available.

Sports side iser

High-performance visor with ventilation mechanism.The negative pressure generated during driving is used to actively exhaust the air inside the vehicle.A set of 4 front and back.

The product is compatible with each safety equipment such as millimeter wave radar (SBS / MRCC), but it may not operate properly depending on the weather and driving conditions as well as mass-produced vehicles.



■ DM-06 Styling Kit For CX-30 (DM series)
Product name適合 車 種
(Model list)
part numberTax-included price
(Price without tax)
Spec.CodesReference work time
Front under spoilerAll carsDMA1 V4 900¥64,900
(¥ 59,000)
Piano Black Painted Made of PPED1.2 h
Front grillAll carsMDM2500¥90,200
(¥ 82,000)
Piano Black / Matte Black 2 Colors Painted AutoExe Ornament Included ABS Resin ※ 1F1.0 h
Side under spoilerAll carsDMA1 V4 910¥79,200
(¥ 72,000)
Piano Black Painted AutoExe Ornament Included Made of PPED1.4 h
Rear under spoilerAll carsDMA1 V4 930¥60,500
(¥ 55,000)
Piano Black Painted Made of PPED0.9 h
Rear roof spoilerAll carsMDM2600-08


MDM2600
¥85,800
(¥ 78,000)

¥63,800
(¥ 58,000)
Piano black painted AutoExe ornament included FRP made drilling required


Painting required AutoExe Ornament included FRP drilling required
D1.0 h
Sports side visorAll carsDMA1 V3 700¥29,700
(¥ 27,000)
Smoke acrylic resin 4 piece set with ventilation mechanismD0.5 h

※ 1 A part of the front grill may be reflected on the screen of the front monitor.Also, when installed on a vehicle with a 360° view monitor, it may be necessary to adjust the aiming of the camera.


<For customers considering simultaneous installation when purchasing a new car>

Some styling kits and functional parts are available as Mazda dealer options.For details, see the Mazda Motor Corporation website.[Accessory lineup]Also, please visit the sales staff of the sales company.


Functional parts


Suspension

"A New Driving Sensation" Suspension is at the core of sporty driving.Our aim is to handle at will beyond the framework of mass-produced vehicles.For drivers who want to enjoy driving positively, it is not just hard and soft, but it provides a street best ride with refined dynamic sensitivity performance such as initial response at the time of steering and transient characteristics of roll. >> Read more

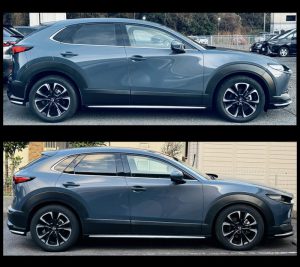

■ Lowdown spring
A low-down spring that tightens the styling sporty and improves handling by lowering the center of gravity.Not too low, not too strong ... By keeping the vehicle height to -20mm and the spring constant to about 110%, the suspension stroke is secured even in combination with mass-produced dampers, and consideration is given so that the damping ratio does not drop too much. ing. >> More details

<Main specifications> ・ Vehicle height: -20mm ・ Spring constant isClick here for the guidelines. for more information.

■ Sports damper
Although it has the same shape as the mass-produced product, the internal piston adopts a "very low speed valve" that generates precise damping force from the moment it starts moving.It accurately controls changes in the vehicle's posture and achieves a sporty, flat and high-quality ride.It is recommended to use with genuine springs (can be used with lowdown springs).>> More details

<Main specifications> ・ Fixed gas damping force

■ Street Sports Suspension Kit
The best street model that AutoExe thinks.A twin tube damper that quickly raises the damping force from the very low speed range and controls the roll speed based on dynamic Kansei engineering. Achieves linear maneuverability without compromising ride quality, such as setting the vehicle height based on -20mm. >> More details

<Main specifications> ・ Vehicle height adjustment type

■ Adjustable stabilizer link
When the vehicle height is down, the angle of the lower arm changes.As a result, the arm angle between the stabilizer and the link becomes an acute angle, which tends to spoil the original stabilizer effect.This product corrects the arm angle when the vehicle height is lowered by adjusting the link length.Optimize the stabilizer function.>> More details

<Main specifications> ・ Full length adjustment type ・ XNUMX pcs set ・ For front.

■ Sports stabilizer
A stabilizer that connects the left and right suspension arms with a pipe and suppresses roll by the spring effect.This product has moderately strengthened spring rate from mass production.Stabilizes the posture when cornering while keeping controllability.Since the spring effect hardly occurs when going straight, the effect on the ride quality is minimal.>> More details

<Main specifications> ・ Front: Solid Φ25.0 ・ Spring constant (compared to mass-produced vehicles): 141%

Product name適合 車 種part numberTax-included price
(Price without tax)
Spec.CodesReference work
Time
Low down springDiesel 2WD car※ 1


Diesel 4WD car※ 1


Gasoline hybrid 2WD vehicle/Gasoline 2WD vehicle (excluding e-SKYACTIV X)※ 1


Gasoline hybrid 4WD vehicle/Gasoline 4WD vehicle (excluding e-SKYACTIV X) ※ 1

DMA1 V5 720


DMA2 V5 720


DMA3 V5 720




DMA4 V5 720



41,800JPY
(¥ 38,000)
Vehicle height -20mm
Spring constant: Fr: 28.8 Rr: 44.6N / mm

Vehicle height -20mm
Spring constant: Fr: 28.8 Rr: 50.2N / mm

Vehicle height -20mm
Spring constant: Fr: 28.0 Rr: 44.6N / mm



Vehicle height -20mm
Spring constant: Fr: 28.0 Rr: 50.2N / mm


D2.6 h
Sports damperAll carsMDM770077,000JPY
(¥ 70,000)
Compatible with fixed damping force mass production springs / AutoExe springsD2.5 h
Street Sports Suspension KitAll cars ※ 1MDM7850195,800JPY
(¥ 178,000)
Vehicle height adjustment type Damping force fixed type Spring constant: Fr: 34.3 Rr: 49.0N / mm
Vehicle height adjustment range (mm) -10 to -30
D3.2 h
Adjustable stabilizer linkfrontAll carsMBP760524,200JPY
(¥ 22,000)
Full length adjustable left and right set of 2D0.5 h
Sports stabilizer frontAll carsMBP760030,800JPY
(¥ 28,000)
Solid φ25.0 Spring constant (compared to mass-produced vehicles) 141%D2.0 h

※ 1 When installed in a car with a 360 ° view monitor, it may be necessary to adjust the aiming of the camera.


Bodysuit

In order to enhance the sense of unity between the driver and the car, tuning to train the body is the basis.By suppressing slight distortion of each part of the body due to input from the road surface such as during cornering, the movement of the suspension initial operating area absorbed by the distortion is drawn out, and handling with a direct feeling without delay of reaction from the moment when the steering is started Contribute to. >> Read more

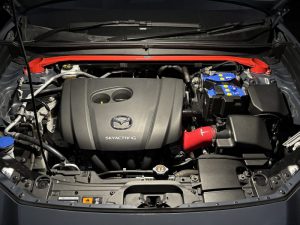

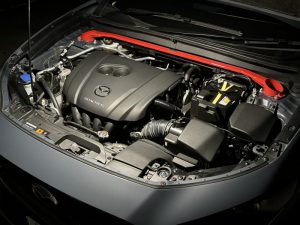

■ Strut tower bar
By connecting the left and right strut towers, the body rigidity is increased.The steel oval shaft, which is advantageous in terms of rigidity, and the one-piece structure ensure the highest level of strength for a two-point system.It is effective when installed separately, but it is best to use it together with the floor crossbar and lower arm bar that are set at the same time.>> More details

<Main specifications> -Steel 2-piece structure XNUMX-point type

Wearing gallery

■ Center floor bar
It suppresses distortion near the center of the body monocoque, which cannot be compensated by strut tower bars and floor crossbars, and compensates for the "annular structure" effect of the SKYACTIV body.I try to have a low center of gravity layout that does not sacrifice the leg space of the rear seats as much as possible.>> More details

<Main specifications> -Steel oval shaft 1-piece configuration 4-point type

Wearing gallery

■ Floor crossbar
By running the bar on the rear floor, it has an effect similar to that of a tower bar.There is no need to drill holes in the body as the mounting points utilize 3 points such as the seat mounting part with high strength.No impact on utility space.Although it is effective even when used alone, it is recommended to use it together with the strut tower bar.>> More details

<Main specifications> -Steel 1-piece structure 3-point type

Wearing gallery

■ Lower arm bar (front)
In mass-produced vehicles, deformation is suppressed by connecting the bases of the left and right lower arms, which are the suspension mounting base points of the open structure, with steel oval pipes.Supports accurate handling by regulating unnecessary alignment changes.Recommended for use with strut tower bars, floor cross bars, etc.>> More details

<Main specifications> -Steel oval shaft 1-piece structure 2-point type

Wearing gallery

■ Torsion beam stiffener
A tough gusset (reinforcing plate) to be attached to the torsion beam mounting parts on the left and right of the rear suspension.It suppresses unnecessary distortion of the same part that occurs when cornering, etc., and supports accurate handling.Best used with the front lower arm bar. >> More details

<Main specifications> -Steel 2-piece structure 2-point type

Wearing gallery

■ Member brace set
An evolved version of the lower arm bar.By mounting a steel frame with a three-dimensional truss structure on the body floor, the chassis rigidity of the highest level as a bolt-on part is obtained.Combined with a strut tower bar that reinforces the front and back of the upper part of the body, a tough monocoque body with two upper and lower stages is completed.Front and back set. >> More details

<Main specifications> -Steel oval shaft with all 3 pieces

■ Motion control beam
Reinforces the front and rear ends of the body to increase torsional rigidity.By suppressing the vibration of the body due to high rigidity with a friction type damper with ultra-high damping, it creates a street best ride with strength and suppleness.A set of two front and back.With a dedicated mounting bracket. >> More details

<Main specifications> -Friction type damper + steel shaft Front and rear set with mounting bracket

Product name適合 車 種part numberTax-included price
(Price without tax)
Spec.CodesReference work
Time
Strut tower barfrontAll cars DMA1 V5 42029,700JPY
(¥ 27,000)
Steel 1-piece structure 2-point typeD0.5 h
Center floor bar2WD car

4WD car
MBP4D00

MBP4D10
35,200JPY
(¥ 32,000)
Steel 1-piece structure 4-point typeD0.5 h
Floor crossbarrearAll cars MDM450019,800JPY
(¥ 18,000)
Steel 1-piece structure 3-point typeD0.8 h
Lower arm bar front All cars ※ 1 MBP4B0019,800JPY
(¥ 18,000)
Steel 1-piece structure 2-point typeD0.5 h
Torsion beam stiffenerAll cars ※ 1 MBP4F0017,600JPY
(¥ 16,000)
Steel 2-piece structure 2-point type D0.5 h
Member brace setAll cars ※ 1 MDM470079,200JPY
(¥ 72,000)
Steel 3-piece structure 10-point front and rear setD1.5 h
Motion control beamAll carsMBP4900A104,500JPY
(¥ 95,000)
Front and rear set with friction damper + steel shaft mounting bracketE1.0 h

※ 1 The member brace set and lower arm bar / torsion beam stiffener cannot be installed at the same time.


Intake & Exhaust

In the intake / exhaust tune, which is directly linked to the pleasure of driving, the point is not to improve the peak power, but to react to instantly convey the driver's intention to the car.The accelerator response has been refined based on the air filter and muffler with moderately reduced resistance.The restrained sports sound also deepens communication between the driver and the car. >> Read more

■ Air filter replacement
A genuine shape product that easily and effectively improves intake efficiency by utilizing the air cleaner box of mass-produced vehicles.The drywall with excellent breathability has little effect on the airflow sensor and is easy to maintain.Disposable type and reasonable price.>> More details

<Main specifications> ・ Dry type ・ Disposable type

■ Ram air intake system
It consists of a semi-open type real carbon cleaner box with a specially designed intake path and a special cylindrical filter.Fresh air is actively introduced from two locations, the mass-produced intake duct that introduces air from the rear of the front grill and the box opening.It increases the amount of intake air to promote fuel injection and obtains power and torque from the normal range.The dry sports sound that excites driving is also attractive.>> More details

<Main specifications> ・Carbon box with special air filter included

Wearing gallery

■ Intake suction kit
Specifications that secure the maximum effective flow path area of ​​intake air and reduce intake resistance.The material used is multi-layer polystar silicon, which has a high effect of suppressing deformation due to negative suction pressure.As a result, the accelerator response has been improved.The crimson coloring adds an accent to the engine room.>> More details

<Main specifications> -Made of Polystar Silicon Hose-Detailed specifications areClick here for the guidelines. for more information.

■ Premier tail muffler (for diesel vehicles)
A series with a sophisticated and profound feeling. The 110X95mm oval-shaped tail end has a very mature texture.It has been tuned exclusively for diesel vehicles to achieve both improved accelerator response from the practical range and a gentle sports sound that suppresses the noise of the interior. >> More details

<Main specifications> ・ Pipe diameter: Φ60.5 ・ Tail diameter: 110 × 95 × 2

[Sound library for audition] * You can compare it with the mass-produced muffler recorded under the same conditions.It may not be accurate due to the characteristics of the playback environment, but please watch it as a reference for changes in sound quality and volume.

Wearing gallery

■ Premier tail muffler (for gasoline vehicles)
A series with a sophisticated and profound feeling. The 110X95mm oval-shaped tail end has a very mature texture.With a large-capacity straight structure silencer that has been carefully tuned for a narrow main pipe diameter and internal structure, it achieves both improved accelerator response from the practical range and a gentle sports sound that suppresses the noise of the room. >> More details

<Main specifications> ・ Pipe diameter: Φ60.5 ・ Tail diameter: 110 × 95 × 2

[Sound library for audition] * You can compare it with the mass-produced muffler recorded under the same conditions.It may not be accurate due to the characteristics of the playback environment, but please watch it as a reference for changes in sound quality and volume.

Wearing gallery

Product name適合 車 種part numberTax-included price
(Price without tax)
Spec.CodesReference work
Time
Air filter replacementDiesel car/e-SKYACTIV X car

Gasoline hybrid/gasoline vehicle (excluding e-SKYACTIV X)
MBP9A00

MBP9A10
9,350JPY
(¥ 8,500)
Dry-type disposable (disposable) typeD0.3 h
Ram air intake systemDiesel Car

Gasoline hybrid/gasoline vehicle (excluding e-SKYACTIV X)
DMA1 V5 900

DMA2 V5 900

¥112,200
(¥ 102,000)
Carbon box Dedicated air filter includedF1.0 h
Intake suction kitDiesel Car


Gasoline hybrid/gasoline vehicle (excluding e-SKYACTIV X)
MBP9600


MBP9610
19,800JPY
(¥ 18,000)

17,600JPY
(¥ 16,000)
Silicone hoseD0.2 h

0.3 h
Premier tail mufflerDiesel Car


Gasoline hybrid AT car/gasoline car (excluding e-SKYACTIV X)
DMA1 V5 810


DMA2 V5 810

104,500JPY
(¥ 95,000)

129,800JPY
(¥ 118,000)
Stainless steel main pipe diameter φ60.5 Tail diameter 110 × 95mm (× 2)D0.7 h

Brake

The first thing that is required of a brake is the ability to stop safely.And in order to enjoy running freely, controllability that can decelerate at will is required.The brake pad, which has a small change in the coefficient of friction (μ) even during continuous braking, and the brace, which increases the rigidity of the pedal mounting part and eliminates the delay in effectiveness, realizes the effect of synchronizing with the driver's sensibility.>> Read more

■ Street sports brake pads
The aim is "deceleration at will".Designed with an emphasis on stable effectiveness during continuous braking, delicate load transfer in cornering, and flexible control of vehicle speed, rather than simply stopping performance.Focus on the amount of change and how to change the coefficient of friction (μ), which constantly changes depending on various conditions such as pedaling force, speed, and temperature.The "transient characteristics of μ" required by sports-oriented drivers realizes a taste that is synchronized with the sensibilities.>> More details

<Main specifications> ・ Non-asbestos friction material ・ Rotor proper temperature: 0 to 400 ℃

■ Street brake rotor
Mass-produced XNUMX-piece structure with the same shape FC Cast iron, but with improved strength by controlling the content of carbon and silicon.Further heat treatment is applied to stabilize the metal connective tissue.It suppresses distortion due to heat and improves fade resistance and crack resistance. >> More details

<Main specifications> ・ 6 slits on one side ・ 1 piece type

Product name適合 車 種part numberTax-included price
(Price without tax)
Spec.CodesReference work time
Street sports brake pads front


rear

All cars


All cars

MDM5A10


MBP5A20

¥16,500
(¥ 15,000)

¥14,300
(¥ 13,000)
Non-asbestos rotor Appropriate temperature: 0-400 ℃D0.5 h
Street brake rotorfrontAll carsMDM5A50¥46,200
(¥ 42,000)
1 piece type with cleaning slit Left and right 2 pieces setD1.0 h
Street brake rotorrearDiesel vehicle, e-SKYACTIV X, gasoline hybrid 4WD vehicle, gasoline 4WD vehicle

Gasoline hybrid 2WD vehicle, Gasoline 2WD vehicle (excluding e-SKYACTIV X)
MKE5A55


MBM5A55

¥44,000
(¥ 40,000)

¥41,800
(¥ 38,000)
1 piece type with cleaning slit Left and right 2 pieces setD1.0 h

Engine & Drivetrain

A group of parts that draws out the full potential of the engine and converts it into traction.A sports clutch set and flywheel that support a pleasant gear change.Limited slip differential, which allows you to actively enjoy the change in the posture of the car when cornering, has created transient characteristics that eliminate sudden movements as much as possible while enhancing the direct feeling with the car.

■ Turbo pipe
By optimizing the layout of the turbo pipe that guides the air supercharged by the turbine to the intercooler, and combining the aluminum elbow pipe whose inner wall is mirrored as much as possible and the 4-layer polyster silicon that has a high deformation suppressing effect, the hose expands due to pressurization. And suppresses the resistance of the air flow path.As a result, the boost pressure rises faster and turbo lag is reduced.Improve the response from the beginning of stepping on the accelerator.The product comes with a gasket required for installation. >> More details

<Main specifications> -Aluminum pipe (anodized) + silicon hose / band / gasket included

■ Sports oil filter
Fine sludge is removed by using a high-efficiency filter medium.By expanding the filtration area by about 5% compared to mass production, filtration efficiency is improved and pressure loss is reduced.Furthermore, by incorporating a powerful neodymium magnet, metal wear debris is captured without missing.It balances the functions required for oil filters at a high level.Dedicated to gasoline engine vehicles. >> More details

<Main specifications> ・ Built-in strong magnet ・ Filtration area expanded by about 5% compared to mass production

■ Sports clutch line
Uses stainless mesh PTFE (Teflon), which has less deterioration due to heat and aging and less expansion due to hydraulic pressure than the rubber used in mass-produced vehicles.Contributes to a direct clutch feel.In addition, PVC coating is applied to protect the hose for safety. >> More details

<Main specifications> -Stainless steel mesh PTFE + PVC coating

■ Quick shifter
By changing the lever ratio of the shift select arm on the transaxle inside the engine room, the stroke has been shortened.It is possible to adjust the stroke to a total of 13 levels, ranging from 41% to 3% compared to mass production, depending on the driver's preference.In addition, rigidity has been increased by changing the interior shift lever connection part from a mass-produced rubber bush to a rigid mount.Achieve a direct and quick feeling.>> More details

<Main specifications>・Mass production ratio: 13%, 28%, 41% Shorter stroke (3-stage adjustment type)

Product name適合 車 種part numberTax-included price
(Price without tax)
Spec.CodesReference work
Time
Turbo pipeDiesel CarMBP3960¥52,800
(¥ 48,000)
Aluminum pipe Silicon hose / band / gasket includedD0.8 h
Sports oil filterGasoline hybrid/gasoline carA00182¥3,080
(¥ 2,800)
Built-in strong magnet Filtration area expanded by about 5% compared to mass production D0.1 h
Sports clutch lineMT carMBP6500¥11,000
(¥ 10,000)
Stainless mesh PTFE hose + PVC coatingD0.5 h
Quick shifterMT carBPA1 V5 630¥60,500
(¥ 55,000)
Mass production ratio: 13%, 28%, 41% Shorter stroke (3-stage adjustable type)F1.5 h


Utility

In order to enjoy everyday driving, I want to pay attention not only to running but also to the texture and usability of the appearance.Please also pay attention to utility items with functionality not found in mass-produced cars, such as a side visor with a ventilation mechanism that tightens the style with a sporty aero form.

■ Oil filler cap
The oil filler cap has been changed from genuine resin to 52S aluminum, which is fully machined and full of craftsmanship.Brilliant red alumite processing is applied to give a mechanical and gorgeous accent to the engine room.The laser-engraved AutoExe logo is also a delicate impression. >> More details

<Main specifications> ・ 52S aluminum fully machined ・ Red alumite processing ・ Laser engraved with AutoExe logo

■ Oil level gauge grip
An item that replaces the resin grip of a mass-produced oil level gauge with aluminum, which is full of craftsmanship.Red alumite processing and laser engraved AutoExe logo give the engine room a mechanical and gorgeous accent.DIY installation is possible with the attached dedicated tool. Compatible with a wide range of vehicles equipped with the SKYACTIV engine. >> More details

<Main specifications> -Aluminum-Red alumite-With AutoExe logo-Includes a dedicated tool for mounting

■ Brake fluid cap
The resin mass-produced brake fluid tank cap has been upgraded to aluminum, which is full of craftsmanship.Red alumite processing and laser engraved AutoExe logo give the engine room a mechanical and gorgeous accent.Combined with an oil filler cap and level gauge grip with the same design, it accelerates the total coordination of the engine room. >> More details

<Main specifications> -Aluminum-Fully machined-Red alumite processing-Laser engraved AutoExe logo included

■ Fuel cap cover
An ABS cover that can be attached over a mass-produced fuel cap.The design with cap bolts on bright Exe Red gives a gorgeous impression to the fuel filler port. With AutoExe logo.Compatible with a wide range of current Mazda vehicles. >> More details

<Main specifications> ・ ABS red painted ・ With decorative cap bolt ・ With AutoExe logo ・ Double-sided tape attached ・ Fuel label / erroneous oil supply prevention reminder sticker included

■ Optima Battery
Synonymous with maintenance-free batteries, which boast a longer life than conventional open-type batteries.It is a completely sealed type that uses the original spiral cell technology, so there is no need to replenish the battery fluid.Provides a stable current even under high load.Can be installed without using additional adapters.>> More details

<Main specifications> -Maintenance-free type made by Optima Battery

■ Battery clamp
Playful in the engine room. Made of one-piece steel designed with the image of an AutoExe strut tower bar.The bright red color and logo plate have been faithfully reproduced.>> More details

<Main specifications> -Steel red paint-With AutoExe ornament

■ Aero sports wiper blade
Uses a flat type blade for the main body.By adding a deflector with fins, the arm joint is made into an aero form.The wind pressure generated during driving is positively received and the wiper lift is suppressed.The blade rubber is evenly adhered to the glass surface to improve visibility when driving at high speeds in the rain.>> More details

<Main specifications> ・ Flat type ・ Equipped with wind deflector ・ Compatible with water-repellent glass ・ Set of 2 left and right

■ Bonnet damper
The high-pressure gas damper assists light and smooth opening and closing.Since the existing lock stay is no longer required, the maintainability of the engine room is greatly improved.Bolt-on mounting is possible with a dedicated mount bracket that minimizes the load on the bonnet and frame of the mounting part.No drilling is required.>> More details

<Main specifications> ・ High-pressure filled gas damper ・ Dedicated bracket included

Wearing gallery

■ Sports side visor
A high-performance side visor with a ventilation mechanism in addition to rain and sun protection.When the recommended side window is open, the negative pressure generated during driving is used to actively discharge the indoor air.At the same time, it also has the effect of preventing the ingress of rainwater.>> More details

<Main specifications> -Smoke type acrylic resin-Set of 4 left and right with AutoExe logo

■ Door handle cover & protector set
A carbon-like matte design that protects the fragile door handle and gives it a sporty look.Pursuing high-quality details and achieving a natural and unified fitting.A package for one unit is available, and the door handle and protector can be purchased separately. >> More details

<Main specifications> ・ Carbon tone ・ Weather resistant ABS cover x 4 ・ PVC protector x 4 ・ One set

Door handle protector
Made of carbon-like PVC that protects the paint around the door handle, which is easily damaged when opening and closing. The lineup includes three colors: black, silver, and red (a color similar to Soul Red Crystal Metallic) that can be selected according to the body color.>>Click here for part numbers and prices

<Main specifications> - Carbon-like AutoExe logo included - PVC double-sided tape adhesive - Left and right set - Front/rear common use (1 sets required for 2 car)

■ Wheel nut set
Irregular heptagonal (heptagonal) small diameter type with an aluminum end cap with the AutoExe logo.The main body is made of high-strength black-painted chrome vanadium steel that does not easily loosen at high temperatures.The knurled red-colored aluminum end cap adds a subtle and sophisticated accent to your car's footwell.>> More details

<Main specifications> - Body: Made of chrome vanadium steel, black paint - Cap: Made of aluminum, red anodized + clear paint - AutoExe logo included - Irregular heptagon type, special adapter wrench included

Product name適合 車 種part numberTax-included price
(Price without tax)
Spec.CodesReference work time
Oil filler capAll models except e-SKYACTIV XA1400-03¥6,380
(¥ 5,800)
One-touch type Aluminum red alumite with AutoExe logoD0.1 h
Oil level gauge gripAll models except e-SKYACTIV XA1450-03¥6,380
(¥ 5,800)
Aluminum red alumite with AutoExe logo Includes dedicated tool for mountingD0.2 h
Brake fluid capAll models except e-SKYACTIV XA1900-03¥7,480
(¥ 6,800)
Aluminum red alumite with AutoExe logoD0.1 h
Fuel cap coverAll carsA1600-03A¥5,280
(¥ 4,800)
ABS red painted AutoExe logoD0.1 h
Optima batteryAll cars A01200¥62,920
(¥ 57,200)
Maintenance-free type Color: Yellow topF0.3 h
Battery clampAll cars A1750¥8,580
(¥ 7,800)
Steel red paint with AutoExe logoD0.1 h
Aero sports wiper bladeAll cars MDM0260¥9,680
(¥ 8,800)
Flat type wind deflector equipped Water repellent glass compatible 2 left and right setD0.1 h
Bonnet damperAll carsMDM2960¥27,500
(¥ 25,000)
High-pressure gas-filled damper + dedicated mounting bracket Set of 2 left and rightD1.0 h
Sports side visorAll cars DMA1 V3 700¥29,700
(¥ 27,000)
Smoke acrylic resin 4 piece set with ventilation mechanismD0.5 h
Door handle cover & protector setAll carsBPA1 V3 110¥29,260
(¥ 26,600)
Carbon-like weatherproof ABS cover x 4 PVC protector x 4 XNUMX setD1.0 h
Wheel nut setAll carsC9A1 V9 770¥16,280
(¥ 14,800)
Includes a dedicated adapter wrench for mounting the Heptagon type with the AutoExe logoD0.3 h

Interior parts

In order to clearly convey the driver's intention to drive to the car, I would like to pay close attention to the texture and functionality of the cockpit interface.For the interior, we have prepared an airbag-compatible steering wheel that has a casual and sporty sensibility and a shift knob that pursues a stroke feeling during operation.I want you to enjoy the dialogue with the car.

■ Sports steering wheel
A red-colored center mark with a flat bottom shape ... An airbag-compatible product with outstanding sportiness.High-quality napper leather is used as the material, and the diameter has been reduced by 7 mm from mass production.Details such as an oval cross-section grip that is not too thick and easy to grip, dimple-processed leather that enhances holdability, and a thumb grip are created to actively enjoy driving. >> More details

<Main specifications> -Made of nappa leather-SRS airbag system / steering switch compatible-Flat bottom shape

■ Carbon paddle shift lever
Made of high-quality real carbon that is mounted over the mass-produced steering shift switch.Improved operability by moderately increasing the size.The cockpit is made sporty by clarifying the response in sports driving. >> More details

<Main specifications> ・ With AutoExe logo ・ Double-sided tape adhesive type ・ All 4 pieces configuration ・ Overall length 100mm (upper + 25mm lower + 10mm extension compared to mass production)

■ Shift knob (spherical shape / genuine leather)
Designed exclusively for straight AT vehicles, with a focus on the stroke feeling when the shift lock is released.The clean appearance and operability of mass-produced products without the unlock button are attractive.Push the upper end of the shift knob during operation.Shift the knob as it is.>> More details

<Main specifications> -For AT cars (straight type) -Made of genuine leather-Weight: 130g

■ Shift knob (spherical shape / genuine leather)
Made of genuine leather with a diameter of 51 mm with an emphasis on operability.A shift knob that fits easily in the palm of your hand and can be gripped on either the top or the side.You can adjust the height according to your physique and taste.AutoExe logo on the top.>> More details

<Main specifications> -For MT vehicles-Made of genuine leather-Screw size MT vehicles: M10 x 1.25-Weight: 190g

■ Shift knob (genuine leather)
Small diameter size with a diameter of 42 mm.A shift knob that fits easily in the palm of your hand and can be gripped on either the top or the side.You can adjust the height according to your physique and taste.Two types of stitches, red stitch and black stitch, can be selected.AutoExe logo on the top. >> More details

<Main specifications> -For MT vehicles-Made of genuine leather-Screw size MT vehicles: M10 x 1.25-Weight: 190g

■ Wide rear view mirror

Frameless type designed exclusively for Mazda vehicles.The blue-coated mirror has a wide field of view up to 1.8 times wider than mass production.The radius of curvature is 3000SR, reducing the parallax with the side mirrors.Contributes to comfortable driving with little viewpoint movement.The smart fitting is attractive. >> More details

<Main specifications> ・Blue chrome surface mirror ・Viewing area about 1.8 times that of mass production ・Curvature radius 3000SR AutoExe logo included

Product name適合 車 種part numberTax-included price
(Price without tax)
Spec.CodesReference work
Time
Sports steering wheelRed stitchAll cars ※ 1BPA1 V0 310¥49,500
(¥ 45,000)
Nappa leather SRS airbag system / steering switch compatible flat bottom shapeD0.4 h
Carbon paddle shift leverVehicles equipped with steering shift switchA1383-20¥17,380
(¥ 15,800)
Carbon 4-piece construction with AutoExe logoD0.1 h
Shift knob (spherical shape / genuine leather)Red stitchAT car


MT car
A1350B-03


A1341-03
¥19,580
(¥ 17,800)

¥9,900
(¥ 9,000)
Diameter: 51mm Overall length: 85mm Push type


Screw diameter: M10 x 1.25 Diameter: 51mm
Overall length: 70-88 mm adjustable
D


D
0.2 h


0.1 h
Shift knob (genuine leather)Red stitch

Black stitch
MT car

MT car
A1396-03

A1396-08
¥9,680
(¥ 8,800)
Screw diameter: M10 x 1.25 Diameter: 42mm
Overall length: 73-91 mm adjustable
D0.1 h
Wide rear view mirrorVehicles equipped with automatic anti-glare rearview mirrorA1520¥11,000
(¥ 10,000)
Blue chrome surface mirror Approximately 1.8 times the viewing area mass production ratio Radius of curvature 3000SRE0.1 h

※ 1 The steering heater is not equipped and will not work.


Goods

Real carbon and suede-like accessories that stand out sporty.Stickers and ornaments that decorate your styling.Please enjoy the coordination with your car in every detail with your sense.

■ Carbon number frame
Autoclave molded dry carbon license plate frame with dramatically improved material and design.UV cut clear coat finish that suppresses deterioration due to ultraviolet rays.A stainless steel AutoExe logo plate is placed in the center. >> More details

<Main specifications> -Autoclave molded dry carbon-UV cut clear coating finish-Stainless steel AutoExe logo plate included

carbon number bolt
High quality number bolt set using dry carbon for the plate part. Dress up your license plate smartly with the 3-piece configuration of our unique low-head stainless steel bolt/carbon washer.>> More details

<Main specifications> - Made of CFRP (logo plate part: dry carbon) - UV cut clear coating finish - Stainless steel low head bolt - AutoExe logo included - Set of 1 for 3 car

■ Leather key holder
Just fit to the new advanced key.The outer skin is made of black cordovan, which has excellent durability.Soft red cowhide leather is used on the inside to gently wrap the smart key.Handmade specifications jointly planned with the pioneering system notebook brand "ASHFORD". >> More details

<Main specifications> Cordovan (horse leather) Made of cowhide AutoExe/ASHFORD embossed logo

■ Fragment case
Old and new advanced keys/card type keys can be stored.Based on black cordovan, which has excellent durability, perforated leather with red permeation expresses a sporty feeling.With card storage case + key chain.Handmade specifications jointly planned with the pioneering system notebook brand "ASHFORD". >> More details

<Main specifications> Cordovan (horse leather), cow leather, AutoExe/ASHFORD embossed logo

■ Key case
A high-quality black suede-like key case compatible with conventional advanced keys.A cover type that firmly protects the key body from scratches and impacts.Red stitching and red lines give a sporty and delicate impression. >> More details

<Main specifications> ・ Black suede tone ・ Red stitch ・ With AutoExe logo

■ Car verification case
High-quality black suede-like that smartly stores in-vehicle documents such as vehicle verification, instruction manuals, and maintenance notes.The red stitching, which is unified to the liner inside the case, also enhances the sports mind. >> More details

<Main specifications> -Black suede tone-Red stitch-AutoExe embossed logo-Size: 245 x 180 x 65 mm

Folding Container
A folding container that is convenient for organizing tools, luggage, and car wash kits. An original product with the AutoExe logo on a base of three colors: black, gray, and red. It can be stored compactly when not in use and can be stacked. The lid has a simple lock function to prevent luggage from falling out.>> More details

<Main specifications> Made of PP; Size: Width 366mm x Depth 264mm x Height 283mm; Capacity: 20L
・With AutoExe logo

■ Ornaments / stickers
You can enjoy it with your own taste.It is also good to dress up with the demo car as a model.
A lineup of high-quality AutoExe logo decorations that make you feel the commitment to driving. >> More details

Product name適合 車 種part numberTax-included price
(Price without tax)
Spec.CodesReference work time
Carbon number frame * 1 * 2For front license plate mountingA1800-20¥18,480
(¥ 16,800)
Made of CFRP (dry carbon) UV cut clear coating finish Comes with stainless steel AutoExe logo plateD0.1 h
carbon number boltGeneral-purpose products (excluding character light type license plates)C9A1 V9 760¥9,350
(¥ 8,500)
Made of CFRP (logo plate part: dry carbon) UV cut clear coating finish Stainless steel low head bolts with AutoExe logo Set of 1 for 3 carD0.1 h
leather key holderVehicles equipped with the new advanced keyMAA0005¥19,800
(¥ 18,000)
Made of cordovan (horse leather) and cowhide with AutoExe/ASHFORD embossed logoF-
fragment caseGeneral-purpose productsMAA0006¥14,850
(¥ 13,500)
Made of cordovan (horse leather) and cowhide with AutoExe/ASHFORD embossed logo Size: 150mm x 72mm x thickness 5-15mmF-
key caseVehicles with old advanced keysA2640-33¥4,180
(¥ 3,800)
Black suede-like red stitching with AutoExe logo.Size: 95mm x 45mm x 20mmD-
Car verification caseGeneral-purpose productsA2810-33A¥7,480
(¥ 6,800)
Black suede-like red stitch with AutoExe logo Size: 245 x 180 x 65 mmD-
Foldable container 20LGeneral-purpose productsMAA0015¥5,500
(¥ 5,000)
Made of PP Size: Width 366mm x Depth 264mm x Height 283mm (folded: 81)mm Capacity: 20L With AutoExe logo G-
Bright ornamentGeneral-purpose productsA12500¥5,280
(¥ 4,800)
Chrome-plated ABS resin double-sided tape adhesive type Size 155mm x 20mmD-
ornamentGeneral-purpose productsA12000¥1,980
(¥ 1,800)
Aluminum double-sided tape adhesive type Size 120mm x 24mmB-
Message logo stickerGeneral-purpose productsA11900-03¥880
(¥ 800)
One-touch transfer type Size 158mm x 28mmB-
Logo sticker (L)General-purpose productssilver

Red

white
A11200-02

A11200-03

A11200-04
¥1,320
(¥ 1,200)
Character type without characters Size 550mm x 56mmB-
Logo sticker (S)General-purpose productssilver

Red

white
A11300-02

A11300-03

A11300-04
¥660
(¥ 600)
Character type without characters Size 270mm x 28mmB-

※ 1 This product may appear on a part of the in-vehicle monitor screen such as a car equipped with a front camera.
※ 2 The leather key holder (MAA0005) and carbon key cover (A2650-20) cannot be installed at the same time.

CX-30 Parts impression

We are posting the raw voice of the customer who is actually wearing it.
Please refer to the car personalization project.

CX-30
It makes you feel fearless and satisfied.
Impressions by vehicle type
CX-30
Impressions by parts
ス タ イ リ ン グ,ー ー テ ィ リ テ テ ー ー
CX-30
Turning the curve became fun.
Impressions by vehicle type
CX-30
Impressions by parts
Suspension
CX-30
It's like a manual.
Impressions by vehicle type
CX-30
Impressions by parts
Interior
CX-30
Improved response when stepping on the accelerator.
Impressions by vehicle type
CX-30
Impressions by parts
Intake and exhaust system
CX-30
Rolling is suppressed and you can run briskly.
Impressions by vehicle type
CX-30
Impressions by parts
Suspension,ス タ イ リ ン グ,ー ー テ ィ リ テ テ ー ー
CX-30
Increases the fun of opening the bonnet.
Impressions by vehicle type
CX-30
Impressions by parts
ー ー テ ィ リ テ テ ー ー
CX-30
The joy of opening the hood.
Impressions by vehicle type
CX-30
Impressions by parts
ー ー テ ィ リ テ テ ー ー
CX-30
The area around the driver's seat is sporty.
Impressions by vehicle type
CX-30
Impressions by parts
ー ー テ ィ リ テ テ ー ー
CX-30
Rear visibility has expanded.
Impressions by vehicle type
CX-30
Impressions by parts
Interior
CX-30
Before you know it, you're holding it.
Impressions by vehicle type
CX-30
Impressions by parts
Interior
CX-30
The shape is very cool.
Impressions by vehicle type
CX-30
Impressions by parts
Intake and exhaust system,ス タ イ リ ン グ
CX-30
I like the way it looks.
Impressions by vehicle type
CX-30
Impressions by parts
ー ー テ ィ リ テ テ ー ー
